Product Details
Place of Origin: NINGBO CHINA
Brand Name: Linkai
Certification: ISO CE
Model Number: SA-YZ2X55
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Export term
Delivery Time: 8-15 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 10 sets / month
Model: |
SA-YZ2X55 |
Max Tension: |
2X55,1X100kn |
Groove Dia: |
1600mm |
Number: |
2X5 |
Weight: |
7500kg |
Reducer: |
RR |
Model: |
SA-YZ2X55 |
Max Tension: |
2X55,1X100kn |
Groove Dia: |
1600mm |
Number: |
2X5 |
Weight: |
7500kg |
Reducer: |
RR |

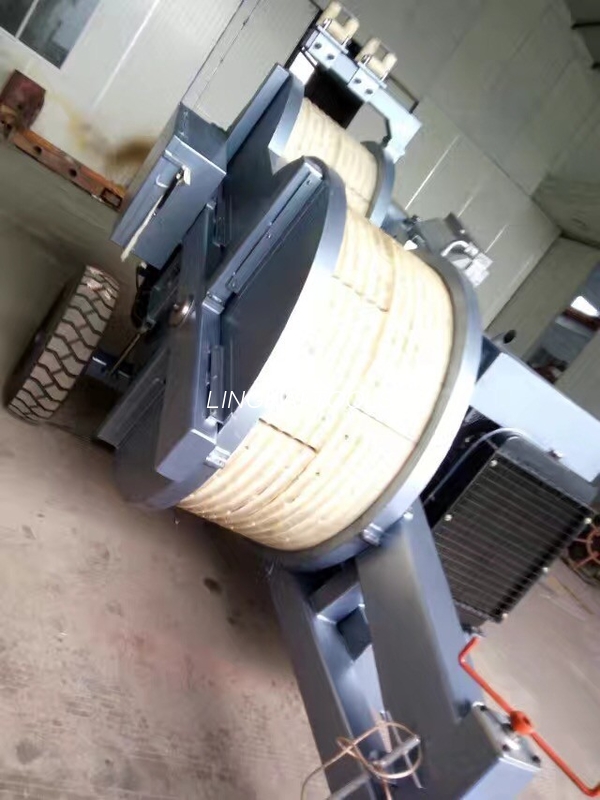

SA-YZ2X55 Overhead Transmission Line Hydraulic Cable Pulling Tensioner
Our SA-YZ2×55 Hydraulic Tensioner is characterized by high reliability, safe operation, and superior quality. Its bullwheel is lined with abrasion resistant MC nylon material. With infinitely variable tension control system, this product can achieve the constant-tension stringing operation.
Also, it contains two sets of hydraulic power output interface, which is able to connect the hydraulic conductor reel stand. In case of hydraulic failure, the spring applied hydraulically released brake will run automatically to guarantee the safety.
Overhead transmission line hydraulic cable pulling tensioner for 2*55 or 1*110KN
Application:SA-YZ2X55 Overhead Transmission Line Hydraulic Cable Pulling Tensioner
Overhead transmission line hydraulic cable pulling tensioner for 2*55or 1*110KN is adequate to tension releasing various conducts and earthwires, and it as one pull one or one pull four using.
Feature:SA-YZ2X55 Overhead Transmission Line Hydraulic Cable Pulling Tensioner
1. Bullwheel with wearproof MC nylon lining segments.
2. Infinitely variable tension control and constant tension conductor stringing .
3. Spring applied hydraulic released brake acts automatically in case of hydraulic failure to ensure safety .
4. Attached two sets of hydraulic power output interface to connect hydraulic conductor reel stand.
Essential Parameters:SA-YZ2X55 Overhead Transmission Line Hydraulic Cable Pulling Tensioner
| Model | SA-YZ110 Hydraulic Tensioner |
| Maximum Tension (kN) | 2× 55 or 1× 110 |
| Continuous Tension (kN) | 2× 50 or 1× 100 |
| Maximum Speed (km/h) | 5 |
| Bullwheel Bottom of Groove Diameter (mm) | Φ1600 |
| Number of Grooves | 2× 5 |
| Maximum Pullback (kN) | 2× 50 or 1× 100 |
| Maximum Speedback (km/h) | 2× 2.1 |
| Maximum Diameter of Suitable Conductor (mm) | Φ42.5 |
| Engine Power / Speed (kW/rpm) | 54/2500 |
| Dimensions (mm) | 5000× 2240 × 2730 |
| Weight (kg) | 7500 |
Main Configurations
| Engine | Beinei Deutz air cooled diesel engine |
| Main Pump/Motor | Rexroth (BOSCH) |
| Main Hydraulic Valve | Rexroth (BOSCH) |
| Reducer | RR (Italian) |
| Radiator | AKG |
| Hydraulic Instrument | WIKA |
