Product Details
Place of Origin: NINGBO CHINA
Brand Name: Linkai
Certification: ISO CE
Model Number: SA-YZ2x80
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Export term
Delivery Time: 8-15 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 10 sets / month
Model: |
SA-YZ2x80 |
Name: |
Hydraulic Tensioner |
Tension: |
2X80kn |
Engine: |
Diesel |
Motor: |
BOSCH |
Model: |
SA-YZ2x80 |
Name: |
Hydraulic Tensioner |
Tension: |
2X80kn |
Engine: |
Diesel |
Motor: |
BOSCH |

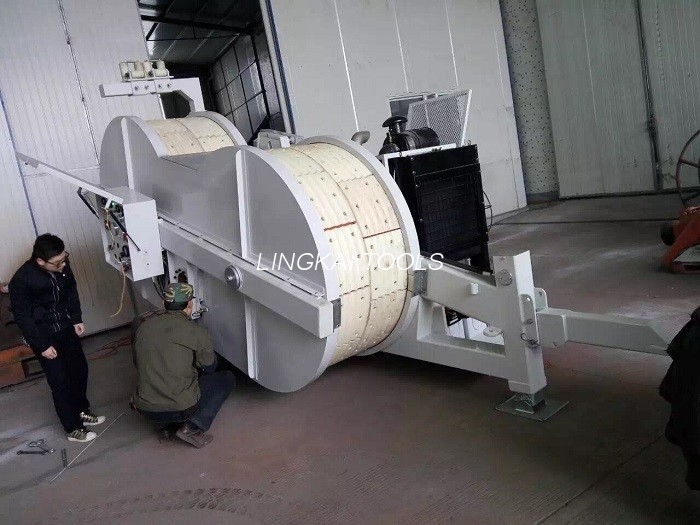

SA-YZ2x80 Two Bundle Conductor Cable Tensioners For Stringing Overhead Line
This SA-YZ2×70 / SA-YZ2×80 Hydraulic Tensioner is designed with the spring applied hydraulically released multi-plate brake, which can work by itself to solve the hydraulic failure problem and better ensure the safe operation. Additionally, our product comes with two sets of hydraulic power output interface for the connection of hydraulic conductor reel stand.
The bullwheel of our hydraulic tensioner possesses wear-proof MC nylon lining segments. The infinitely variable tension control system allows our product to realize the constant-tension stringing.
Main Specifications
SA-YZ2x80 Two Bundle Conductor Cable Tensioners For Stringing Overhead Line
| Item Number | 07198 | 07199 |
| Model Number | SA-YZ2×70 | SA-YZ2×80 |
| Maximum Tension (kN) | 2×70 or 1×140 | 2×80 or 1×160 |
| Continuous Tension(kN) | 2×65 or 1×130 | 2×75 or 1×150 |
| Maximum Speed (km/h) | 5 | |
| Bullwheel Bottom of Groove Diameter (mm) | Φ1700 | |
| Number of Grooves | 2× 5 | |
| Maximum Pullback (kN) | 2× 63 or 1× 126 | |
| Maximum Speedback (km/h) | 2× 1.6 | |
| Maximum Diameter of Suitable Conductor (mm) | Φ45 | |
| Engine Power /Speed (kW/rpm) | 82.5/2500 | |
| Dimensions (mm) | 5300× 2300 × 2900 | |
| Weight (kg) | 8500 | |
Main Components
SA-YZ2x80 Two Bundle Conductor Cable Tensioners For Stringing Overhead Line
| Engine | Deutz air-cooled diesel engine |
| Main Pump/Motor | Rexroth (BOSCH) |
| Main Hydraulic Valve | Rexroth (BOSCH) |
| Reducer | RR (Italian) |
| Radiator | AKG |
| Hydraulic Instrument | WIKA |
