Product Details
Place of Origin: NINGBO CHINA
Brand Name: Linkai
Certification: ISO CE
Model Number: SA-YQ90
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Export term
Delivery Time: 8-15 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 10 sets / month
Model: |
SA-YQ90 |
Name: |
Hydraulic Puller |
Pull Force: |
9T |
Continus Force: |
8T |
Max Speed: |
5km/h |
Groove Number: |
7 |
Model: |
SA-YQ90 |
Name: |
Hydraulic Puller |
Pull Force: |
9T |
Continus Force: |
8T |
Max Speed: |
5km/h |
Groove Number: |
7 |

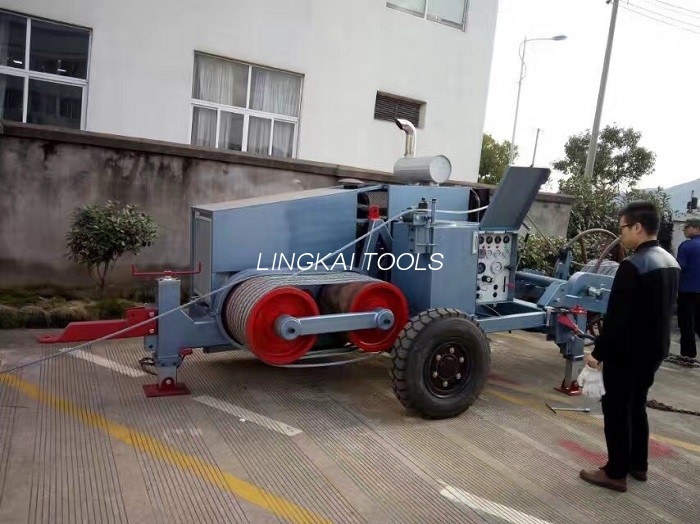

SA-YQ90 90KN steel Cable Tensioners Hydraulic Puller With Diesel Engine
Our SA-YQ90 Hydraulic Puller possesses the steplessly adjustable traction force and pulling speed, and the pull in the rope can be visually displayed on the line pull gauge. This equipment also comes with an overload automatic protection system. The maximum traction force can be preset. A reliable overhead protection mechanism makes this machine easy to be used.
Moreover, the spring applied hydraulically released brake can act automatically. Thus, the secure operation of our SA-YQ90 Hydraulic Puller can be well ensured, when the motor suddenly turns off or other reasons cause the hydraulic failure.
Thanks to the hydraulic type rope clamping device, it is easy to replace the steel wire rope reel. Additionally, our machine is equipped with the steel wire rope automatically winding device, which can automatically arrange the rope and also make loading and unloading convenient.
Detailed Parameters
SA-YQ90 90KN steel Cable Tensioners Hydraulic Puller With Diesel Engine
| Model | SA-YQ90 Hydraulic Puller |
| Maximum Traction Force (kN) | 90 |
| Continuous Tractive Effort (kN) | 80 |
| Maximum Pulling Speed (km/h) | 5 |
| Bullwheel Bottom of Groove Diameter (mm) | Φ520 |
| Number of Bullwheel Grooves | 7 |
| Maximum Diameter of Suitable Steel Rope (mm) | Φ21 |
| Maximum Through Connector Diameter (mm) | Φ60 |
| Engine Power / Speed (kW/rpm) | 121/2500 |
| Dimensions (mm) | 3500× 2100× 2500 |
| Weight (kg) | 4300 |
Main Components
SA-YQ90 90KN steel Cable Tensioners Hydraulic Puller With Diesel Engine
| Engine | Cummins (USA) water-cooled diesel engine |
| Main Variable Displacement Pump, Main Motor | Rexroth (BOSCH) |
| Reducer | Rexroth (BOSCH) |
| Main Hydraulic Valves | Rexroth (BOSCH) |
| Radiator | AKG |
| Hydraulic Instrument | WIKA |
| Suitable Drum | Model GSP1400 (order number: 07125C) |
| Option | Cummins DONGFENG water-cooled diesel motor (Model: YA-YQ90D, Item number: 07042) |
How to order?
| Step 1 | Contact Us |
| Show Us Item Name, Colors, Quantity and Details / Requirements | |
| Step 2 | Make a Performa Invoice for you |
| Step 3 | Performa Invoice Confirm and Payment |
| Step 4 | Production and Shipment |
Our Service:
High quality fasteners products with best price;
Many years excellent experience with pre-sale and after-sale service;
Strict quality control according to your requirement;
Professional packing team keep every pack safely;
Send you some free samples along with your cargo to share us quality;
