Product Details
Place of Origin: NINGBO CHINA
Brand Name: Linkai
Certification: ISO CE
Model Number: SA-YQ60
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Export term
Delivery Time: 8-15 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 10 sets / month
Model: |
SA-YQ60 |
Name: |
Cable Puller |
Item: |
Hydraulic Puller |
Engine: |
Commins,Dongfeng |
Reucer: |
RR |
Valve: |
BOSCH |
Model: |
SA-YQ60 |
Name: |
Cable Puller |
Item: |
Hydraulic Puller |
Engine: |
Commins,Dongfeng |
Reucer: |
RR |
Valve: |
BOSCH |

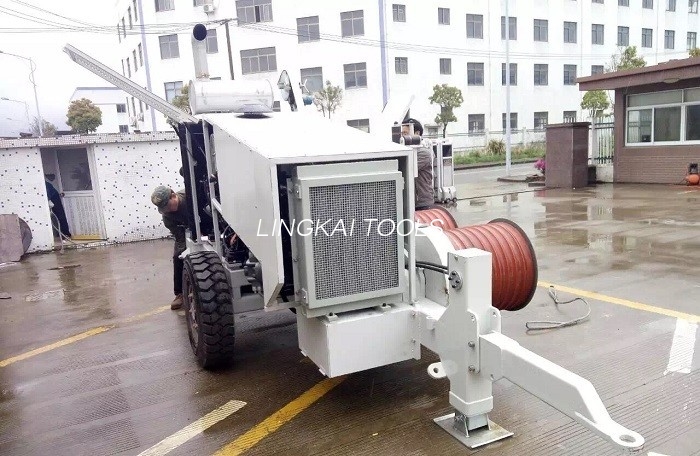

SA-YQ60 Hydraulic Cable Puller With Diesel Engine For Overhead Stringing
This SA-YQ60 Hydraulic Puller makes use of the spring applied hydraulically released brake which can act automatically. If the motor suddenly turns off or other reasons lead to the hydraulic failure, our product can still ensure its safe operation.
Our SA-YQ60 Hydraulic Puller will show its overload automatic protection function. Both pulling speed and traction force can be adjusted steplessly. Users can read the pull in the rope from the line pull gauge. They can also preset the maximum traction force for conductor stringing operation.
Finally, this puller contains the steel wire rope automatically winding device, which can arrange the rope by itself and also load and unload conveniently.
Technical Parameters
SA-YQ60 Hydraulic Cable Puller With Diesel Engine For Overhead Stringing
| Model | SA-YQ60 Hydraulic Puller |
| Maximum Traction Force (kN) | 60 |
| Continuous Tractive Effort (kN) | 50 |
| Maximum Pulling Speed (km/h) | 5 |
| Bullwheel Bottom of Groove Diameter (mm) | Φ460 |
| Number of Bullwheel Grooves | 7 |
| Maximum Diameter of Suitable Steel Rope (mm) | Φ18 |
| Maximum Through Connector Diameter (mm) | Φ60 |
| Engine Power / Speed (kW/rpm) | 77/2800 |
| Dimensions (mm) | 3800× 2100× 2300 |
| Weight (kg) | 3000 |
Configurations
SA-YQ60 Hydraulic Cable Puller With Diesel Engine For Overhead Stringing
| Engine | Cummins (DONGFENG ) water cooled engine |
| Main Variable Pump and Main Motor | Rexroth (BOSCH) |
| Reducer | RR (Italian) |
| Main Hydraulic Valve | Rexroth (BOSCH) |
| Radiator | AKG |
| Hydraulic Instrument | WIKA |
| Suitable Drum | GSP1400 (Item number: 07125C) |
