Product Details
Place of Origin: NINGBO CHINA
Brand Name: Linkai
Certification: ISO CE
Model Number: SA-YQ40
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Export term
Delivery Time: 8-15 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 10 sets / month
Model: |
SA-YQ40 |
Name: |
Hydraulic Puller |
Apply: |
220KV Transmission Line |
Using: |
Pulling Conductor |
Force: |
40KN |
Grooves Number: |
7 |
Model: |
SA-YQ40 |
Name: |
Hydraulic Puller |
Apply: |
220KV Transmission Line |
Using: |
Pulling Conductor |
Force: |
40KN |
Grooves Number: |
7 |

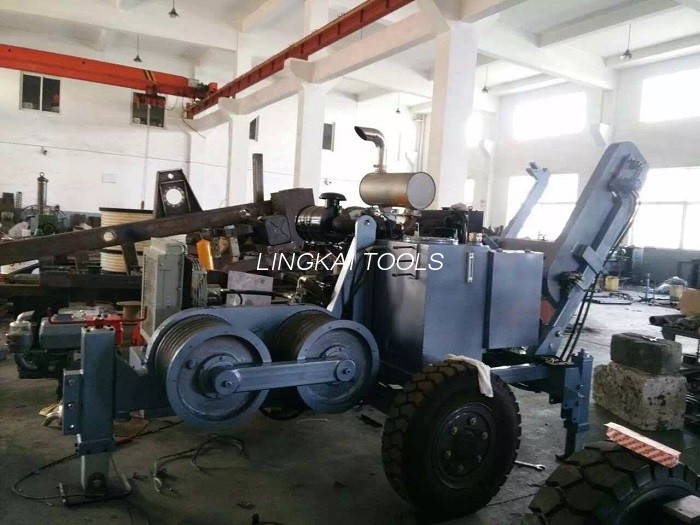

Cable Pulling Tools 40KN Hydraulic Cable Puller For 220KV Transmission Line
Our SA-YQ40 Hydraulic Puller has an overload automatic protection function. The maximum traction force for conductor stringing operation is able to be preset. Another function is the automatic action of spring applied hydraulically released brake. Owing to it, our product is safe to be operated, in case that the motor suddenly turns off, or other reasons cause the hydraulic failure.
In use of this SA-YQ40 Hydraulic Puller, both pulling speed and traction force are steplessly adjustable. The pull in the rope can be clearly displayed on the line pull gauge. Moreover, our product employs the steel wire rope automatically winding device, for automatic rope arrangement as well as easy loading and unloading.
Main Specifications
Cable Pulling Tools 40KN Hydraulic Cable Puller For 220KV Transmission Line
| Model | SA-YQ40 Hydraulic Puller |
| Maximum Traction Force (kN) | 40 |
| Continuous Tractive Effort (kN) | 35 |
| Maximum Pulling Speed (km/h) | 5 |
| Bullwheel Bottom of Groove Diameter (mm) | Φ400 |
| Number of Bullwheel Grooves | 7 |
| Maximum Diameter of Suitable Steel Rope (mm) | Φ16 |
| Maximum Through Connector Diameter (mm) | Φ50 |
| Engine Power / Speed (kW/rpm) | 60/2000 |
| Dimensions (mm) | 3500× 2000× 2300 |
| Weight (kg) | 2500 |
Main Components
Cable Pulling Tools 40KN Hydraulic Cable Puller For 220KV Transmission Line
| Engine | Cummins (DONGFENG ) water cooled engine |
| Main Variable Pump and Main Motor | Rexroth (BOSCH) |
| Reducer | RR (Italian) |
| Main Hydraulic Valve | Rexroth (BOSCH) |
| Radiator | AKG |
| Hydraulic Instrument | WIKA |
| Suitable Drum | Model GSP1400 (Item number: 07125C) |
How about the delivery date?
A.: Within 15 days after deposit received. Urgent order or small order will be handled case by case.
What are your Payment terms?
A. General speaking: TT 50% deposit, the balance is paid upon the copy of B/L.
B. We also accept: L/C, D/A, D/P, Western Union, MoneyGram and Paypal.
How to order?
| Step 1 | Contact Us |
| Show Us Item Name, Colors, Quantity and Details / Requirements | |
| Step 2 | Make a Performa Invoice for you |
| Step 3 | Performa Invoice Confirm and Payment |
| Step 4 | Production and Shipment |
