Product Details
Place of Origin: NINGBO
Brand Name: Linkai
Certification: ISO CE
Model Number: SHCN SHC
Payment & Shipping Terms
Minimum Order Quantity: 5pcs
Price: Get the latest
Packaging Details: Customized
Delivery Time: 5-8workdays
Payment Terms: T/T, L/C
Supply Ability: 1000pcs/month
Function: |
Stringing Conductor |
Apply: |
Overhead Line Sytringinf |
Type: |
Pulley Block |
Matrial: |
Aluminum Or MC Nylon |
Rated Load: |
10KN |
Feature: |
Light Heavy Duty |
Function: |
Stringing Conductor |
Apply: |
Overhead Line Sytringinf |
Type: |
Pulley Block |
Matrial: |
Aluminum Or MC Nylon |
Rated Load: |
10KN |
Feature: |
Light Heavy Duty |

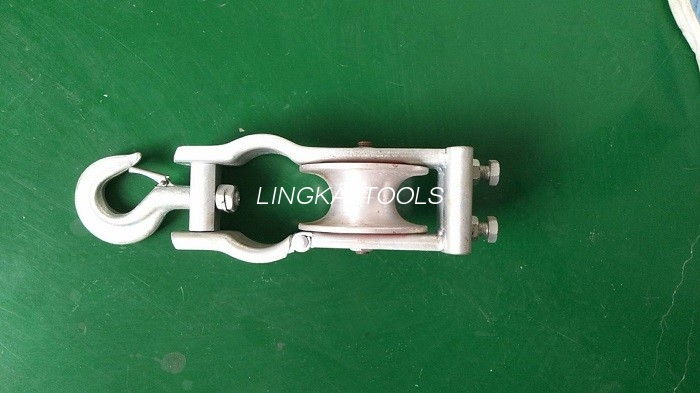

SHCN Model Universal Hook Style Pulley Block Transmission Line Blocks
Universal Crossarm Mounted And Hooked Style Stringing Block Pulley
Description:
1. We manufacture a lot of models Cable pulling block for different uses in the overhead transmission line construction
2. They have are used to support conductors, OPGW,ADSS, communication lines
3. The sheave of the pulley blocks are made from high strength MC nylon,or aluminum materials ,and the frame of blocks are made of galvanized steel.
4. cable pulley block are high strength and flexibility, easy to use, light weight, wear-resisting, and long service life.
Universal Stringing Blocks with Hooks
The stringing blocks are used for overhead transmission line conductor stringing operation. It can be hanged or installed on cross arm
Data Sheet
| Item No. | Model | O. D. of Sheave (mm) | Sheave Width (mm) | Rated Load (KN) | Weight (kg) | Material |
| 10261 | SHC-80X50 | Φ80 | 50 | 5 | 1.9 | Aluminum |
| 10262 | SHC-120X30 | Φ120 | 30 | 5 | 2.1 | |
| 10263 | SHC-160X40 | Φ160 | 40 | 10 | 2.5 | |
| 10264 | SHC-120X58 | Φ120 | 58 | 20 | 3.5 | |
| 10271 | SHCN-80x50 | Φ80 | 50 | 5 | 1.4 | Nylon |
| 10272 | SHCN-120x30 | Φ120 | 30 | 5 | 1.6 | |
| 10273 | SHCN-160x40 | Φ160 | 40 | 10 | 2 | |
| 10274 | SHCN-120x58 | Φ120 | 58 | 20 | 2.5 |
