Product Details
Place of Origin: NINGBO CHINA
Brand Name: Linkai
Certification: ISO CE
Model Number: SLX
Payment & Shipping Terms
Minimum Order Quantity: 10sets
Price: Get the latest
Packaging Details: Wooden case
Delivery Time: 5-8 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 1000pcs/day
Model: |
SLX-3 |
Rated Load: |
3T |
Outseide Size: |
37MM |
Weight: |
0.65kg |
Item No: |
17124 |
Name: |
Swivel Joint |
Model: |
SLX-3 |
Rated Load: |
3T |
Outseide Size: |
37MM |
Weight: |
0.65kg |
Item No: |
17124 |
Name: |
Swivel Joint |

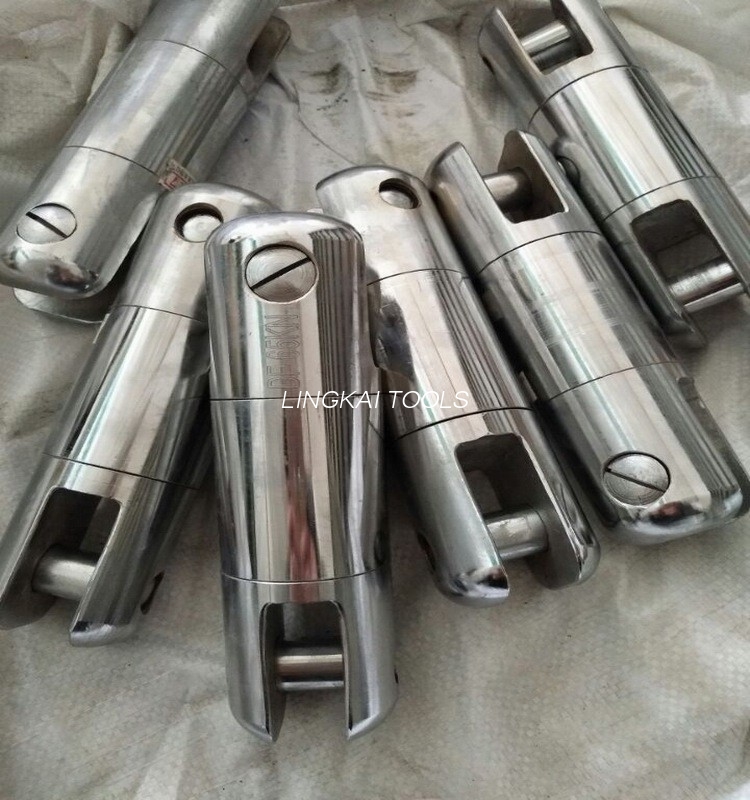

Rated Load 50 kN Transmission Line Swivel Joint High Strength Steel Swivel Joint
Quick details:
1. Transmission Line Stringing Equipment Accessories & Tools
2. Swivel Joints
3. Rated Load: 50kN
4. Outside Diameter: 42mm
5. Weight 0.65KG
6. Dong Huan Brand
This over head line swivel joints is applied to connecting and ACSR with steel stranded rope in stringing construction. The product can release torsion strain accumulation rope.
Product is made of high strength steel with samll size, it can pass through the stringing block.
Swivel Joint For Connecting Mesh Sock And Pulling Rope are suitable to connect the pulling rope to the mesh sock joint mounted on the conductors; they are mounted on thrust bearings and they are designed to avoid torsion strain accumulation. They are made of highly tensile galvanized steel; the special design can bear the high radial loads, which occur during the passage over the pulleys.
Parameter :
|
Order
number
|
Model | Mainsize (mm) |
Rated
load(kN)
|
Weight
(kg)
|
||||
| A | B | C | D | E | ||||
| 17121 | SLX-0.5 | 19 | 61 | 40 | 8 | 9 | 5 | 0.2 |
| 17122 | SLX | 35 | 100 | 70 | 12 | 13 | 10 | 0.4 |
| 17123 | SLX | 30 | 120 | 90 | 14 | 14 | 20 | 0.55 |
| 17124 | SLX | 37 | 129 | 95 | 16 | 16 | 30 | 0.65 |
| 17125 | SLX | 42 | 154 | 116 | 18 | 17 | 50 | 1.5 |
| 17125A | SLX-6.5 | 51 | 185 | 140 | 20 | 19 | 65 | 2.0 |
| 17126 | SLX-8 | 57 | 220 | 165 | 24 | 22 | 80 | 2.4 |
| 17127 | SL130 | 62 | 248 | 192 | 26 | 24 | 130 | 3.5 |
| 17128 | SL180 | 75 | 294 | 222 | 26 | 26 | 180 | 7.2 |
| 17129 | SL250 | 85 | 331 | 251 | 30 | 30 | 250 | 10.6 |
| 17130 | SL250Y | 80 | 323 | 243 | 30 | 30 | 250 | 8.0 |
