Product Details
Place of Origin: NINGBO CHINA
Brand Name: Linkai
Certification: ISO CE
Model Number: SLU
Payment & Shipping Terms
Minimum Order Quantity: 10sets
Price: get the latest
Packaging Details: Wooden case
Delivery Time: 5-8 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 1000sets/day
Model: |
17111 |
Name: |
Fixed Joints |
Type: |
Transmission Line Tools |
Rated Load: |
5T |
Out Size: |
50mm |
Weight: |
0.6kg |
Model: |
17111 |
Name: |
Fixed Joints |
Type: |
Transmission Line Tools |
Rated Load: |
5T |
Out Size: |
50mm |
Weight: |
0.6kg |

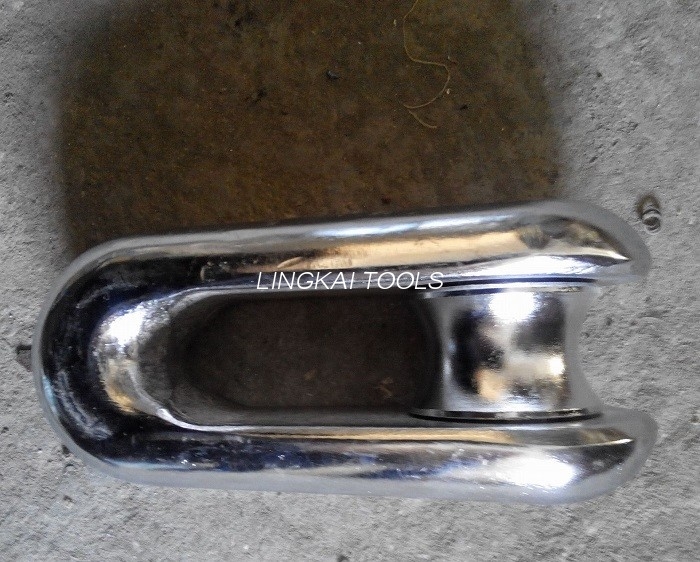

Rated Load 30kN U-shape Anti-bending Steel Joint Overhead Line Fixed Joints
Quick Information:
1. Transmission line tools and accessories
2. Rated load 50KN
3. Size out size is 50mm
4. Material High galvenzied steel
5. Weight 0.6kg
6. Brand Donghuan
7.U-shape Anti-bending
|
Order
number
|
Model | Mainsize (mm) |
Rated
load(kN)
|
Weight
(kg)
|
||||
| A | B | C | D | E | ||||
| 17111 | SLU-1 | 36 | 68 | 18 | 14 | 29 | 10 | 0.2 |
| 17112 | SLU-3 | 37 | 76 | 20 | 17 | 31 | 30 | 0.22 |
| 17113 | SLU-5 | 50 | 96 | 23 | 19 | 42 | 50 | 0.6 |
| 17114 | SLU-8 | 58 | 110 | 28 | 25 | 50 | 80 | 0.8 |
| 17115 | SLU-10 | 59 | 126 | 30 | 26 | 54 | 100 | 1.2 |
| 17116 | SLU-13 | 61 | 134 | 32 | 27 | 56 | 130 | 1.3 |
| 17117 | SLU-15 | 63 | 138 | 37 | 28 | 58 | 150 | 1.4 |
| 17118 | SLU-25 | 80 | 178 | 44 | 35 | 72 | 250 | 3.0 |
