Product Details
Place of Origin: NINGBO CHINA
Brand Name: Linkai
Certification: ISO CE
Model Number: SHT
Payment & Shipping Terms
Minimum Order Quantity: 5PCS
Price: GET THE LATEST
Packaging Details: WOODEN CASE
Delivery Time: 5-8 WORK DAYS
Payment Terms: T/T, L/C, Western Union
Supply Ability: 1000PCS/WEEK
MODEL: |
SHT |
RATED LOAD: |
2T |
WHEEL: |
CAST STEEL SHEAVE |
TYPE: |
STRINGING BLOCK |
WEIGHT: |
4.5KG |
DIAMTER: |
165MM |
MODEL: |
SHT |
RATED LOAD: |
2T |
WHEEL: |
CAST STEEL SHEAVE |
TYPE: |
STRINGING BLOCK |
WEIGHT: |
4.5KG |
DIAMTER: |
165MM |
SHT Model 20KN Grounding Wire Stringing Block Steel Sheave Stringing Block

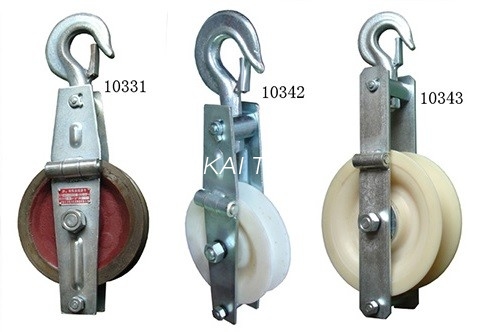

Single Sheave Stringing Block
|
Item number |
Model |
Applicable stranded wire |
Rated load (kN) |
Weight (kg) |
Remark |
| 10331 | SHT-120×30 | GJ35 | 5 | 2.2 |
Cast steel sheave |
| 10332 | SHT-150×32 | GJ70 | 10 | 3.6 | |
| 10333 | SHT-165×50 | GJ120 | 20 | 4.5 | |
| 10334 | SHT-200×60 | GJ150 | 20 | 5.2 | |
| 10341 | SHTN-120×30 | GJ35 | 5 | 1.6 |
Nylon sheave |
| 10342 | SHTN-150×32 | GJ70 | 10 | 2.4 | |
| 10343 | SHTN-165×50 | GJ120 | 20 | 3.3 | |
| 10344 | SHTN-200×60 | GJ150 | 20 |
3.8
|
Cast Steel Sheave Stringing Block:
1. Donghuan Brand
2. 2T rated load
3. Suit to stranded wire GJ120
4. Stringing pulley blocks in the transmission line site
5. Mode SHT165 diameter.
6. Side Open tybe can be
Grounding wire stringing block, earth wire stringing block:
it is apply to pull steel strand.
