Product Details
Place of Origin: NINGBO
Brand Name: Lingkai
Certification: ISO CE
Model Number: 660mm
Payment & Shipping Terms
Minimum Order Quantity: 20 sets
Price: get the latest
Packaging Details: exported packing
Delivery Time: 5-15 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 1000sets/month
Description: |
Overhead Cable Stringing Blocks |
Outer Diameter Of Sheave: |
660mm |
Inner Diameter Of Sheave: |
560mm |
Conductor Diameter: |
Up To 30mm |
CUSTOMER: |
Helicopter Conductor Stringing Blocks |
Description: |
Overhead Cable Stringing Blocks |
Outer Diameter Of Sheave: |
660mm |
Inner Diameter Of Sheave: |
560mm |
Conductor Diameter: |
Up To 30mm |
CUSTOMER: |
Helicopter Conductor Stringing Blocks |

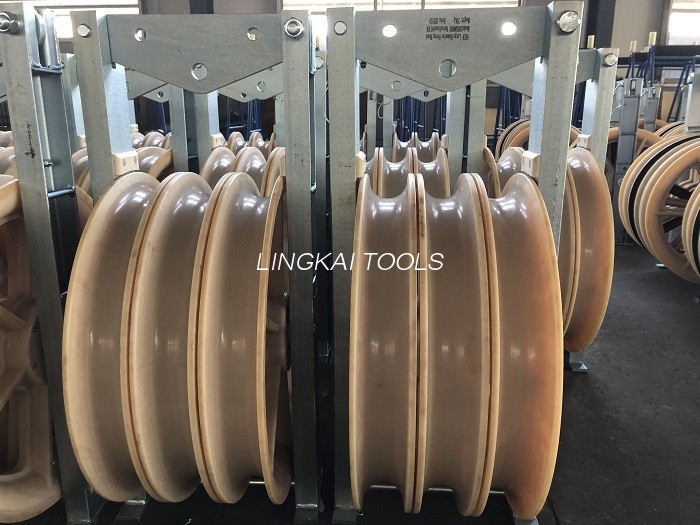

660 Mm Nylon Large Diameter Stinging Block Pulley Transmission Line Conductor
660MM Overhead Conductor Stringing Blocks are used for overhead transmisson line conductor or OPGW stringing. The sheave is made in aluminum alloy lined with neoprene or high Strength MC Nylon.
660MM Overhead Transmission Line Conductor Stringing Blocks
| Item No. | Model | ACSR Size Range (mm²) | Working Load (KN) | Weight (kg) | Material of Sheave |
| 10121 | SHD660 | 400-500 | 20 | 30 | Aluminum alloy |
| 10124 | SHDN660 | 400-500 | 20 | 24 | MC Nylon |
| 10122 | SHS660 | 400-500 | 40 | 106 | Central steel or Nylon sheave, Side sheave Aluminum lined with neoprene |
| 10125 | SHSLN660 | 400-500 | 40 | 92 | |
| 10127 | SHSQN660 | 400-500 | 40 | 76 | MC Nylon |
| 10123 | SHW660 | 400-500 | 60 | 150 | Aluminum Alloy lined with neoprene |
| 10126 | SHWLN660 | 400-500 | 60 | 120 | |
| 10128 | SHWQN660 | 400-500 | 60 | 110 | MC Nylon |
| 10129 | SHQZ660 | 400-500 | 80 | 260 | Central steel, conductor sheave nylon or aluminum alloy |
| 10130 | SHQ660A | 400-500 | 80 |
190 |
Note:
1. Hook fitting, round eye fitting, and clevis fitting are optional, please specify when ordering. Customized blocks could be supplied on request.
The data in the model means the outer diameter of sheave X width of sheave (mm).
2. All the sheaves are mounted on ball bearings. The frame of blocks is made in galvanized steel.
