Product Details
Place of Origin: NINGBO
Brand Name: Lingkai
Certification: ISO CE
Model Number: 660mm
Payment & Shipping Terms
Minimum Order Quantity: 20 sets
Price: get the latest
Packaging Details: exported packing
Delivery Time: 5-15 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 1000sets/month
Trade Term: |
FOB,CFR,CIF,DDP,CIP,EXW |
Custom: |
Helicopter Conductor Stringing Blocks |
Means Of Transport: |
Ocean, Air, Land |
Conductor Diameter: |
Up To 30 Mm |
Trade Term: |
FOB,CFR,CIF,DDP,CIP,EXW |
Custom: |
Helicopter Conductor Stringing Blocks |
Means Of Transport: |
Ocean, Air, Land |
Conductor Diameter: |
Up To 30 Mm |

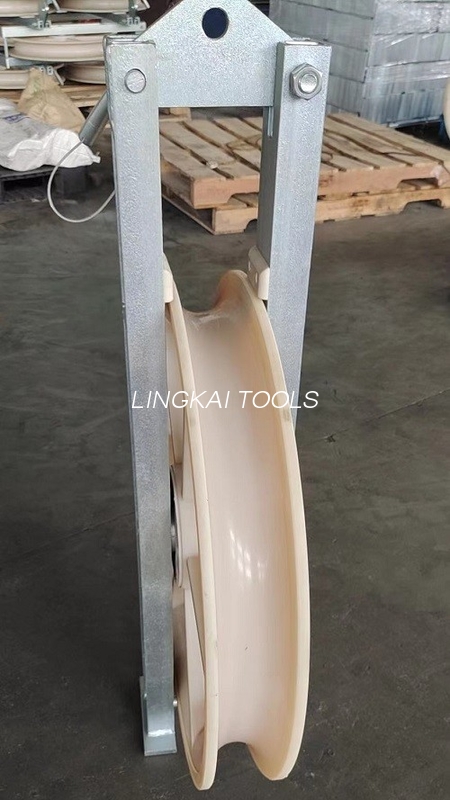

Single nylon single sheave cable pulley wheel ascr conductor stringing block
660MM Overhead Transmission Line Conductor Stringing Blocks
| Item No. | Model | ACSR Size Range (mm²) | Working Load (KN) | Weight (kg) | Material of Sheave |
| 10121 | SHD660 | 400-500 | 20 | 30 | Aluminum alloy |
| 10124 | SHDN660 | 400-500 | 20 | 24 | MC Nylon |
| 10122 | SHS660 | 400-500 | 40 | 106 | Central steel or Nylon sheave, Side sheave Aluminum lined with neoprene |
| 10125 | SHSLN660 | 400-500 | 40 | 92 | |
| 10127 | SHSQN660 | 400-500 | 40 | 76 | MC Nylon |
| 10123 | SHW660 | 400-500 | 60 | 150 | Aluminum Alloy lined with neoprene |
| 10126 | SHWLN660 | 400-500 | 60 | 120 | |
| 10128 | SHWQN660 | 400-500 | 60 | 110 | MC Nylon |
| 10129 | SHQZ660 | 400-500 | 80 | 260 | Central steel, conductor sheave nylon or aluminum alloy |
| 10130 | SHQ660A | 400-500 | 80 | 190 |
Single sheave Nylon Stringing Block
| Item No. | Model | ACSR Size Range (mm²) | Working Load (KN) | Weight (kg) | Material of Sheave |
| 10191 | SHDN-120x30 | 25-70 | 5 | 1.5 | Nylon |
| 10192 | SHDN-160x40 | 70-95 | 10 | 2.4 | |
| 10193 | SHDN-200x40 | 95-120 | 15 | 2.6 | |
| 10194 | SHDN-200x60 | 120-150 | 15 | 3.1 | |
| 10195 | SHDN-250x40 | 120-150 | 20 | 3.7 | |
| 10196 | SHDN-250x60 | 150-180 | 20 | 3.9 | |
| 10197 | SHDN-270x60 | 180-240 | 20 | 4.4 | |
| 10198 | SHDN-320x60 | 240-300 | 20 | 7.5 | |
| 10199 | SHDN-400x80 | 300-400 | 20 | 8 | |
| 10104 | SHDN508 | 300-400 | 20 | 16 | Nylon, optional can be lined with neoprene |
| 10124 | SHDN660 | 400-500 | 20 | 24 | |
| 10131 | SHDN750 | 500-600 | 30 | 32 | |
| 10141 | SHDN822 | 600-700 | 30 | 38 | |
| 10151 | SHDN916 | 700-800 | 50 | 51 | |
| 10165 | SHDN1040 | 800-900 | 50 | 60 |
Application: It is suitable to string stranded aluminum and ACSR conductors on tangent structures. Compression sleeves, swivel connectors, and pulling rope connectors can pass through the groove.
