Product Details
Place of Origin: NINGBO CHINA
Brand Name: Lingkai
Certification: ISO CE
Model Number: 822 mm
Payment & Shipping Terms
Minimum Order Quantity: 50 sets
Price: get the latest
Packaging Details: Standard shipping packing
Delivery Time: 5-10 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000 sets /month
Description Of Product: |

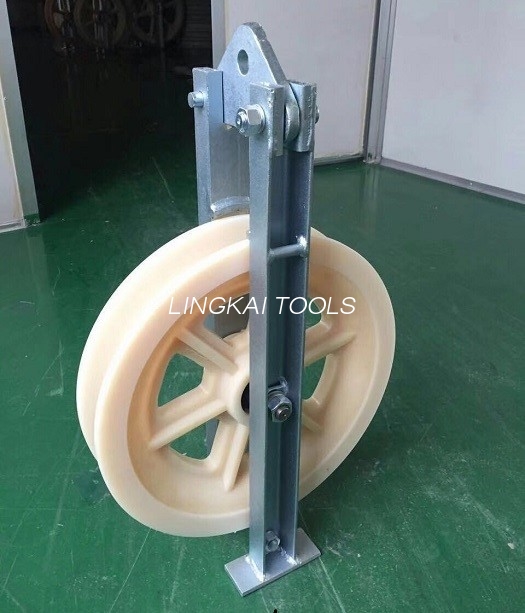

Transmisson Line Conductor Stringing Blocks |
Inner Diameter Of Sheave: |
710mm |
Outer Diameter Of Sheave: |
822mm |
Width Of Sheave: |
110mm |
Material Of Sheave: |
MC Nylon Or Steel |
Conductor Diameter: |
Up To 36mm |
Description Of Product: |
Transmisson Line Conductor Stringing Blocks |
Inner Diameter Of Sheave: |
710mm |
Outer Diameter Of Sheave: |
822mm |
Width Of Sheave: |
110mm |
Material Of Sheave: |
MC Nylon Or Steel |
Conductor Diameter: |
Up To 36mm |
Famous Lifting Cable Pulley Block Large Diameter Conductor Pulley Block
Product Description
We are the leading and biggest manufacture for stringing equipment and tools in China. We can provide whole set of equipment and tools for overhead transmission line stringing up to 1000 KV. Our products have exported to more than 40 countries in the world.
Three sheaves Stringing Blocks
| Item No. | Model | ACSR Size Range (mm²) | Working Load (KN) | Weight (kg) | Material of Sheave |
| 10102 | SHS508 | 300-400 | 40 | 61 | Central steel or Nylon sheave, Side sheave Aluminum lined with neoprene |
| 10105 | SHSLN508 | 300-400 | 40 | 47 | |
| 10122 | SHS660 | 400-500 | 40 | 106 | |
| 10125 | SHSLN660 | 400-500 | 40 | 92 | |
| 10107 | SHSQN508 | 300-400 | 40 | 43 | Nylon, optional can be lined with neoprene |
| 10127 | SHSQN660 | 400-500 | 40 | 76 | |
| 10132 | SHSQN750 | 500-600 | 60 | 98 | |
| 10142 | SHSQN822 | 600-700 | 60 | 110 | |
| 10152 | SHSQN916 | 700-800 | 75 | 126 | |
| 10166 | SHSQN1040 | 800-900 | 105 | 200 |
Application: It is suitable to string two or three stranded aluminum and ACSR conductors on tangent structures. Compression sleeves, swivel connectors, and pulling rope connectors can pass through the groove. The sheave is made in aluminum alloy or high strength nylon. The big size 508mm, 660mm aluminum alloy sheave can be lined with neoprene. The big size 660mm, 822mm, 916mm, 1040mm nylon sheave can be lined with neoprene.
Note:
1. Clevis fitting are optional, please specify when ordering. Customized blocks could be supplied on request. The data in the model means the outer diameter of sheave X width of sheave (mm).
2. All the sheaves are mounted on ball bearings. The frame of blocks is made in galvanized steel.
