Product Details
Place of Origin: NINGBO CHINA
Brand Name: Lingkai
Certification: ISO
Model Number: SLWG
Payment & Shipping Terms
Minimum Order Quantity: 10 pcs
Price: get the latest
Packaging Details: plywood case
Delivery Time: 5-8 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 20000 pcs/month
Model: |
SLWG-1 SLWSG-1 SLWG-2 SLWGS-2 |
Working Load: |
10-30 KN |
Max. Breaking Force: |
60KN |
OPGW Diameter: |
8-25mm |
Description Of Product:: |
OPGW Socket Pulling Grips |
Types Of Grips: |
With Or Without Protection |
Model: |
SLWG-1 SLWSG-1 SLWG-2 SLWGS-2 |
Working Load: |
10-30 KN |
Max. Breaking Force: |
60KN |
OPGW Diameter: |
8-25mm |
Description Of Product:: |
OPGW Socket Pulling Grips |
Types Of Grips: |
With Or Without Protection |

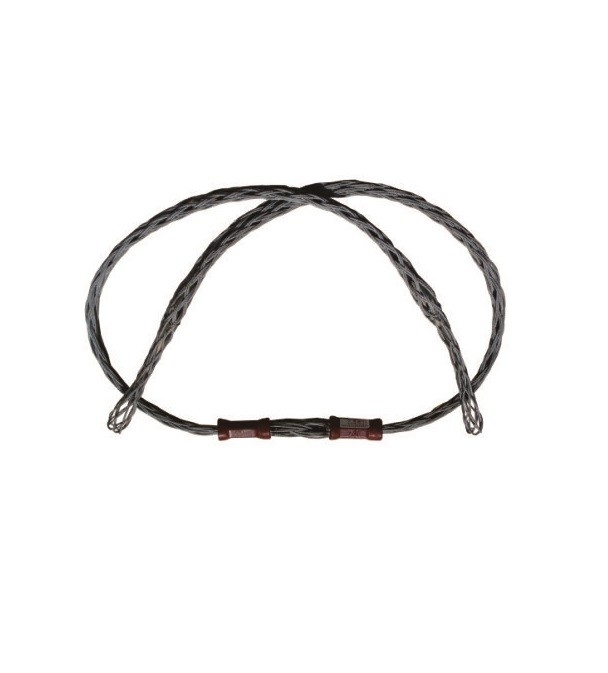

OPGW Socket Pulling Grips are used for pulling OPGW cable or earth wire in installation or stringing of OPGW or earth wire on overhead power line.
OPGW Pulling Grips (Mesh Socket Joints)
| Single head Item No. | Model | OPGW Size (mm) | Load (KN) | |
| Normal | Rated | Break | ||
| 20105 | SLWG-1 | 10-20 | 10 | 30 |
| 20105A | SLWGS-1 | 10-20 | 10 | 30 |
| 20106 | SLWG-2 | 20-25 | 20 | 60 |
| 20106A | SLWGS-2 | 20-25 | 20 | 60 |
Application: length 1.2m, it is used to hold OPGW or Earth Wire. The pulling grips are specially braided from high strength galvanized steel wire strands. It can hold the OPGW tightly and protect the surface of OPGW well.
