Product Details
Place of Origin: NINGBO
Brand Name: Lingkai
Certification: ISO
Model Number: QY-65, QY-125, QY-200, QY-300
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: Get the latest
Packaging Details: wooden case packing
Delivery Time: 3-5 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 sets/month
Description: |
Hydraulic Crimping Tools |
Compression Force: |
Max. 300 Tons |
Max. Diameter Of Aluminum Sleeve: |
100mm |
Max. Conductor Size: |
ACSR45 |
Max. Diameter Of Steel Sleeve: |
50mm |
Model: |
QY-65, QY-125, QY-200, QY-300 |
Description: |
Hydraulic Crimping Tools |
Compression Force: |
Max. 300 Tons |
Max. Diameter Of Aluminum Sleeve: |
100mm |
Max. Conductor Size: |
ACSR45 |
Max. Diameter Of Steel Sleeve: |
50mm |
Model: |
QY-65, QY-125, QY-200, QY-300 |
Hydraulic Crimping Tools are used for compression of sleeves for ACSR conductor, OPGW cable. It is used in overhead transmission line stringing
Hydraulic Compressors for Conductor Joints
| Item No. | Model | Max. Compression Force (KN) | Max. Hydraulic Pressure (MPa) | Max. ACSR Size (mm²) | Stroke (mm) | Weight (kg) |
| 16101 | QY-25 | 250 | 70 | 240 | 22 | 6 |
| 16102 | QY-45 | 450 | 70 | 240 | 25 | 12 |
| 16103 | QY-65 | 650 | 94 | 500 | 25 | 25 |
| 16104 | QY-125 | 1250 | 94 | 720 | 25 | 40 |
| 16105 | QY-200 | 2000 | 94 | 1440 | 25 | 85 |
| 16106A | QY-300 | 3000 | 94 | 2500 | 35 | 126 |

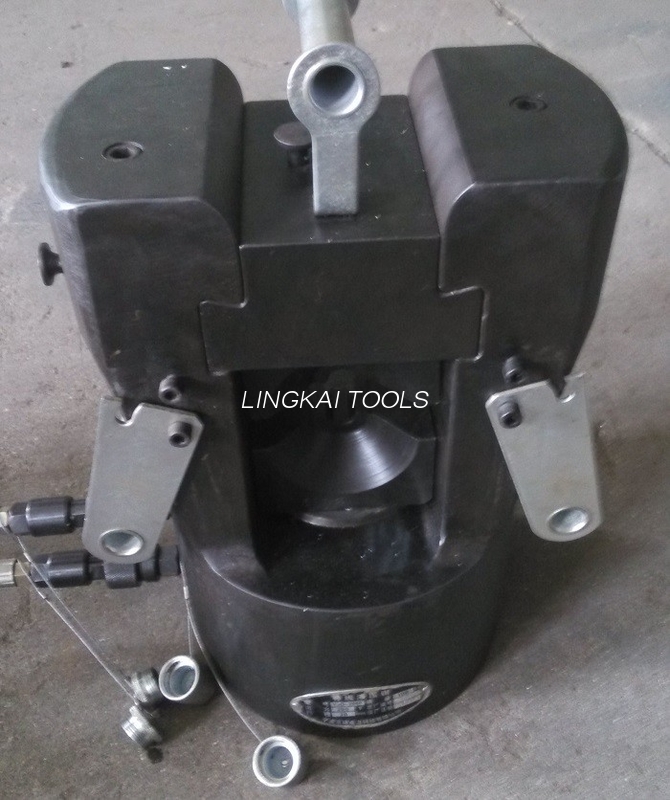

Application: The hydraulic compressor head is used with motorised hydraulic pump for compression of conductor joint or earth wire joint. It is casted from high strength steel.
Note:
- QY-25, QY-45 operated by hand or electric power pump; QY-65, QY-125, QY-200 operated by motorized hydraulic pump station with high pressure.
- Please refer to Item No.16141-16153 for hydraulic pump stations; Item No. 16161-16163 for hand operated pumps.
- Supplied with compression die sets. (See Item No. 16121-16126 and 16131-16134 for dies.)
High Pressure Hydraulic Pump Station (Model: YBG-94WQ)
| Item No. | Description | Hydraulic Pressure (MPa) | Oil Flow (L/min) | Power (KW) | Weight (kg) |
| 16146 | Gasoline motor driven hydraulic pump station mounted on hand cart | 75 | 1.5 | 4.41 | 68 |
Note: The pump stations only act as power sources for hydraulic compressors or other equipment.
The Gasoline motor is HONDA GX160.
The length of standard hydraulic Hose is 3 meters. Longer Hose is optional.
Hexagon Compression Die sets
| Item No. | Matching Compressor | Specification of Hexagonal Die Set (Outer Diameter of Compression terminal, L for Aluminum compression terminal, G for steel terminal) |
| 16121 | QY-25 | Copper or Aluminum Terminators 16-240mm2 |
| 16122 | QY-35 | L – 16, 18, 20, 22, 24, 26, 30, 32, 34, 36 mm |
| 16123 | QY-65 |
L - 26, 28, 30, 32, 34, 36, 38, 40, 45, 50 mm G -12, 14, 16, 18, 20, 22, 24, 26 mm |
| 16124 | QY-125 |
L - 26, 28, 30, 32, 34, 36, 38, 40, 45, 50, 52, 55, 60 mm G -12, 14, 16, 18, 20, 22, 24, 26 mm |
| 16125 | QY-200 |
L - 26, 28, 30, 32, 34, 36, 38, 40, 45, 50, 52, 55, 60, 65, 70, 75, 80 mm G -12, 14, 16, 18, 20, 22, 24, 26, 28, 30, 32 mm |
| 16126 | QY-250 |
L - 30, 32, 34, 36, 38, 40, 45, 50, 52, 55, 60, 65, 70, 75, 80,95,100 mm G -16, 18, 20, 22, 24, 26, 28, 30, 32,34,36,38,42,44,45,48,50 mm |
Note: the Hexagonal Die sets could be made according to the requirement of customer.
Quick Hydraulic Crimping Tools
| Item No. | Model | Max. Compression Force (KN) | Stroke (mm) | Compression Size range | Weight (kg) |
| 16192 | CPO-300 | 120 | 19 | 16-300mm2 terminal or compression sleeve; 10-240 mm2 aluminum terminal or compression sleeve |
4.3 |
| 16193 | CPO-400 | 130 | 22 | 50-400mm2 copper terminal or compression sleeve; 35-300mm2 aluminum terminal or compression sleeve |
6.6
|
Note: The Hydraulic Crimping Tools is used with different dies (arc die or hexagonal die) and to make different compression joint capacity.
Feature: With the help of hydraulic power and double speed unit, crimping become easy and fast. Fiberglass handles and safety valve equipped, avoid electric shock and protect hydraulic system from overpressure.
CPO300 Mould: 16/25/35 / 50 / 70 / 95 / 120 / 150 / 185 / 240 / 300mm2
CPO400 Mould: 50 / 70 / 95 / 120 / 150 / 185 / 240 / 300/400 mm2
All Hydraulic Crimping Tools are packed in plywood case.
