Product Details
Place of Origin: Ningbo
Brand Name: Lingkai
Certification: ISO
Model Number: SKL-40 SKL-50 SKL-60 SKGF-7A SKGF-9A
Payment & Shipping Terms
Minimum Order Quantity: 10sets
Price: get the latest
Packaging Details: Wooden case
Delivery Time: 3-8 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 10000 pcs/month
Diameter Of Conductor: |
Max 48mm |
Material: |
Aluminum Alloy Or Alloy Steel |
Type Of Come Along Clamp: |
Automatic Or Bolted |
Working Load: |
Max. 15 Tons |
Description: |
Conductor Come Along Clamps |
Model: |
SKL-40 SKL-50 SKL-60 SKGF-7A SKGF-9A |
Diameter Of Conductor: |
Max 48mm |
Material: |
Aluminum Alloy Or Alloy Steel |
Type Of Come Along Clamp: |
Automatic Or Bolted |
Working Load: |
Max. 15 Tons |
Description: |
Conductor Come Along Clamps |
Model: |
SKL-40 SKL-50 SKL-60 SKGF-7A SKGF-9A |
Production Description
Come along clamps are used for holding conductor or ground wire (or OPGW cables) in overhead transmisson line stringing or maintenance operation.
As the leading biggest manufacture of stringing tools in China, we have designed and manufactured different kinds of come along clamps for different cables: Automatic come along clamps for Aluminum conductors, ground wires, OPGW cables, insulated conductors, anti twisting braided steel wire ropes, Bolted come along clamps for Aluminum conductors, ground wires, OPGW cables, insulated conductors, anti twisting braided steel wire ropes, round steel wire ropes, steel wire strands etc.

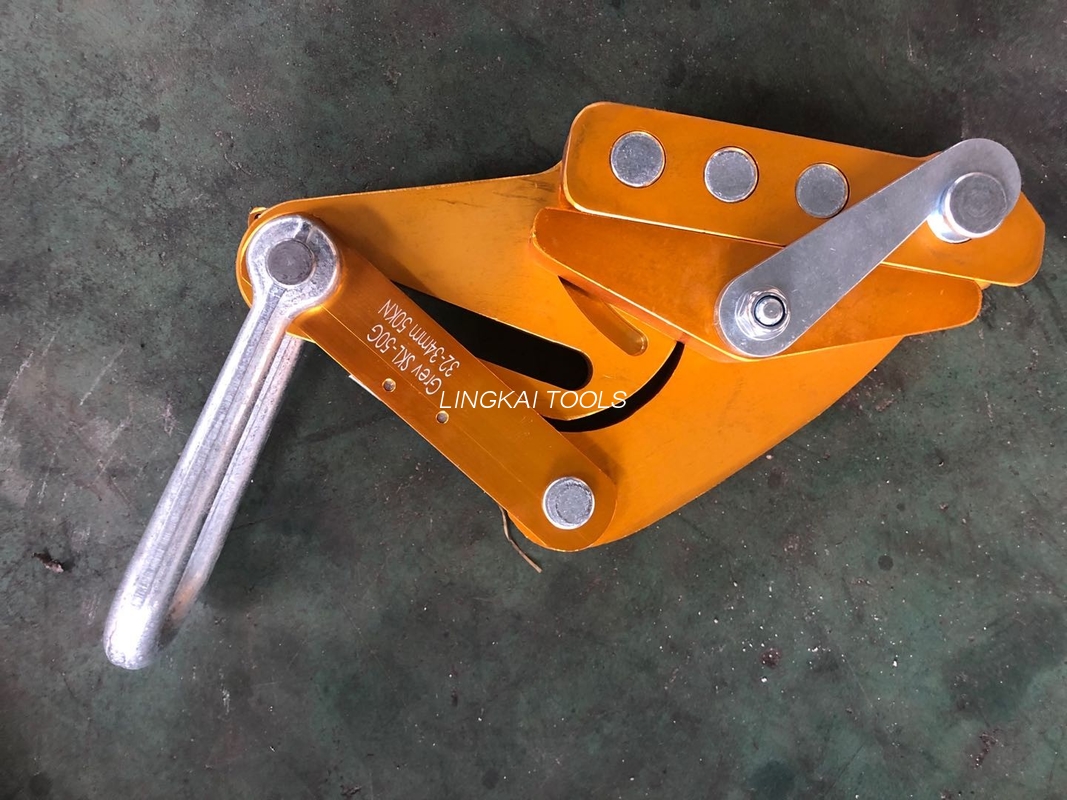

Aluminum Alloy Conductor COME ALONG CLAMPS
|
Item No. |
Model |
Rated Load (KN) |
Conductor Diameter (mm) |
Max. Opening (mm) |
Weight (kg) |
|
13221 |
SKL-7 |
7 |
ACSR7-12 |
14 |
1.0 |
|
13222 |
SKL-15 |
15 |
ACSR13-16 |
18 |
1.4 |
|
13223 |
SKL-25 |
25 |
ACSR17-23 |
24 |
3.0 |
|
13224 |
SKL-40 |
40 |
ACSR23-29 |
32 |
4.4 |
|
13225 |
SKL-50 |
50 |
ACSR30-35 |
36 |
6.6 |
|
13227 |
SKL-60 |
60 |
ACSR36-38 |
40 |
9.2 |
|
13228 |
SKL-70 |
70 |
ACSR38-40 |
42 |
14 |
|
13229 |
SKL-80 |
80 |
ACSR40-42 |
45 |
18 |
|
13229A |
SKL-90 |
90 |
ACSR42-45 |
48 |
20 |
Application: Used to pull conductors in power and communication line construction field, and to maintain temporary tension until it can be permanently terminated.
Feature: The grips are forged from high strength aluminum alloy, light weight and compact.
Aluminum Alloy Bolted type Come Along Clamps for ACSR conductor
|
Item No. |
Model |
Working Load (KN) |
Conductor range |
Weight (kg) |
Material |
|
13172A |
SKGF-5A |
50 |
Φ20-25 mm |
8 |
Aluminum alloy |
|
13173A |
SKGF-6A |
60 |
Φ25-28 mm |
10 |
Aluminum alloy |
|
13175A |
SKGF-7A |
70 |
Φ28-30 mm |
12 |
Aluminum alloy |
|
13176A |
SKGF-9A |
90 |
Φ31-36 mm |
15 |
Aluminum alloy |
Application: It is specially used for adjustment of sagging of conductors. It is made of High strength Aluminum alloy, to protect the surface of conductor.
The bolted clamp is designed with 7 bolts for Zebra conductor.
The actual conductor size should be informed before order.
Steel Bolted type Come Along Clamps for ACSR conductor
|
Item No. |
Model |
Working Load (KN) |
Conductor range |
Weight (kg) |
Material |
|
13230 |
SK3035DP1 |
120 |
Φ30-35 mm |
48 |
Alloy Steel |
|
13231 |
SK45DP1 |
150 |
Φ37-45 mm |
50 |
Alloy Steel |
Application: It is specially used for adjustment of sagging of conductors in big sag or big span transmission line stringing operation. It is made of High strength Alloy Steel, to protect the surface of conductor.
The bolted clamp is designed with different bolts for different working load.
The actual conductor size should be informed before order.
The bolt should be tightened before using, the torque force should be: 120 N.m.
Package
1. The equipment and tools will be loaded in plywood case.
2. It also can be packed in steel frame case or wooden case.
