Product Details
Place of Origin: NINGBO
Brand Name: Lingkai
Certification: ISO
Model Number: HSS 408 416 432
Payment & Shipping Terms
Minimum Order Quantity: 2 sets
Price: Get the latest
Packaging Details: Wooden case
Delivery Time: 3-8 work days
Payment Terms: L/C, T/T
Supply Ability: 5000sets/month
Working Load: |
8/16/32 KN |
Diameter Of Wire Rope: |
8/11.6/16 Mm |
Hand Operated Force: |
343 / 400 / 441 N |
Transmission Line Stringing Tools: |
Tirfor Hand Winch |
Stroke: |
40MM |
Standard Length Of Wire Rope: |
20 Meter |
Weight: |
6.8 / 13 / 25 Kg |
Packing: |
Plywood Case |
Working Load: |
8/16/32 KN |
Diameter Of Wire Rope: |
8/11.6/16 Mm |
Hand Operated Force: |
343 / 400 / 441 N |
Transmission Line Stringing Tools: |
Tirfor Hand Winch |
Stroke: |
40MM |
Standard Length Of Wire Rope: |
20 Meter |
Weight: |
6.8 / 13 / 25 Kg |
Packing: |
Plywood Case |

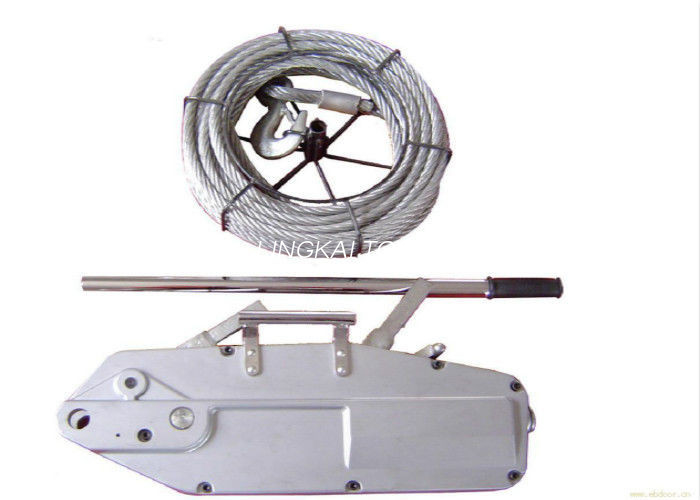

Tirfor Cable Puller Winch is used for lifting and pulling operation in transmission line construction project. It is also used for sagging operation
Tirfor Pulling Winch
| Item No. | Model | Lifting Load (KN) | Pulling Load (KN) | Steel Rope Dia.(mm) | Stroke (mm) | Steel Rope Length (m) | Weight (kg) |
| 14183 | HSS408 | 8 | 12.5 | Φ8 | ≥40 | 20 | 6.8 |
| 14184 | HSS416 | 16 | 25 | Φ11.6 | ≥40 | 20 | 13 |
| 14185 | HSS432 | 32 | 50 | Φ16 | ≥16 | 20 | 25 |
Application: It is used to lifting and tension operation during transmission line construction and stringing. The working load on the handle is not more than 441 KN.
Features: With ratchet system, easy to operate and turn flexible.
All tTirfor machines are equipped with Handles and wire ropes.
Our tirfor pulling winches are designed and produced with high quality materials and are very durable in transmission line construction. They are exported to more than 30 countries in the world.
