Product Details
Place of Origin: NINGBO
Brand Name: Lingkai
Certification: ISO
Model Number: SJS-0.5,1,2,3,5,8,10
Payment & Shipping Terms
Minimum Order Quantity: 10 pcs
Price: Get the latest
Packaging Details: Wooden case packing
Delivery Time: 3-8 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 10000pcs/month
Max. Adjustable Distance: |
600mm |
Max. Center-Center Distance: |
1740mm |
Rated Load: |
100kn |
Max Weight: |
10kgs |
Name: |
SJS Double Hook Turnbuckle |
Packing: |
Wooden Case |
Max. Adjustable Distance: |
600mm |
Max. Center-Center Distance: |
1740mm |
Rated Load: |
100kn |
Max Weight: |
10kgs |
Name: |
SJS Double Hook Turnbuckle |
Packing: |
Wooden Case |

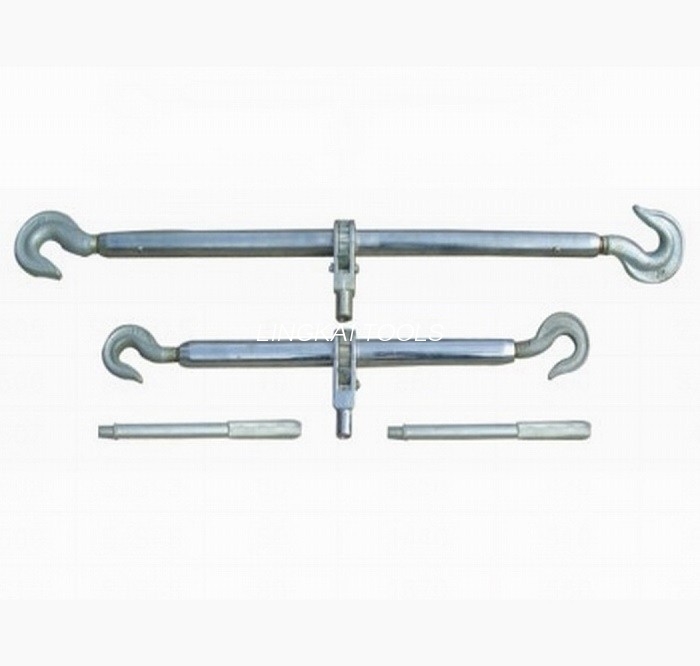

Steel Double Hook Turnbuckles
High Quality Model SJS Double Hook Turnbuckle is used in power transmission construction, telecommunications engineering, tighten the wire. Apply to tightening conductor, steel wire rope or steel standed wire on installing stay wire and replacing insulator stringing.
| Item No. | Model | Rated Load (KN) | Max. Center-Center Distance (mm) | Max. Adjustable Distance (mm) | Weight (kg) |
| 14111 | SJS-0.5 | 5 | 730 | 230 | 2.5 |
| 14112 | SJS-1 | 10 | 840 | 280 | 3.5 |
| 14113 | SJS-2 | 20 | 1030 | 330 | 4 |
| 14114 | SJS-3 | 30 | 1350 | 460 | 6 |
| 14115 | SJS-5 | 50 | 1440 | 500 | 8 |
| 14116 | SJS-8 | 80 | 1660 | 580 | 8.5 |
| 14117 | SJS-10 | 100 | 1740 | 600 | 10 |
Application: It is used to tension steel ropes or steel stranded wires in sagging operations. The ratchet structure can ensure good operation in line stringing operation.
The double hook turnbuckles are made in high quality galvanized steel.
Option: The hooks can be changed to ring type.
All the products are packed in plywood case
The hooks type and ring type turnbuckles are optional for transmision line sagging operation
Feature
1.Cooperate with lead wire stick wire implement, traction and tighten up lead wire.
2.Tightening range is big, practicability strong.its safe and reliable.
