Product Details
Place of Origin: NINGBO
Brand Name: Lingkai
Certification: ISO
Model Number: ST25R ST50R ST50S ST100S
Payment & Shipping Terms
Minimum Order Quantity: 2sets
Price: get the latest
Packaging Details: Wooden case packing
Delivery Time: 3-8 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 5000 sets.month
Model: |
ST25R ST50R ST50S ST100S |
Working Load: |
25KN, 50KN, 100KN |
Weight: |
13-97 Kgs |
Number Of Conductors: |
2, 3, 4, 6 |
Description: |
Conductor Lifting Tools Hooks |
Packing: |
Plywood Case |
Model: |
ST25R ST50R ST50S ST100S |
Working Load: |
25KN, 50KN, 100KN |
Weight: |
13-97 Kgs |
Number Of Conductors: |
2, 3, 4, 6 |
Description: |
Conductor Lifting Tools Hooks |
Packing: |
Plywood Case |
Conductor Lifters are used for lifting bundled conductors in sagging operation after stringing. We design and produce different types of lifting tools according to different working load and bundled conductors
Conductor Lifting Plate Hooks
| Item No. | Model | Work load (KN) | Lining Length (mm) | Lining Width (mm) | Weight (kg) |
| 19101 | ST8 | 8 | 60 | 36 | 1 |
| 19102 | ST12 | 12 | 120 | 48 | 2.5 |
| 19103 | ST25 | 25 | 200 | 40 | 7 |
| 19104 | ST40 | 40 | 260 | 50 | 10.5 |
| 19105 | ST60 | 60 | 265 | 60 | 12 |
Application: Lifting hooks are used for lifting conductors on transmission line. Customer can use it to assemble different conductor lifter according to their requirement.
Note: Groove of hook is covered with an aluminum lining to eliminate damage to the conductor.
Lifting Tools for Bundled Conductors
| Item No. | Model | Work load (KN) | Lining Length (mm) | Weight (kg) |
| 19112 | ST25R | 2 x 12 | 120 | 13 |
| 19113 | ST50R | 2 x 25 | 200 | 26 |
| 19114 | ST80R | 2 x 40 | 260 | 40 |

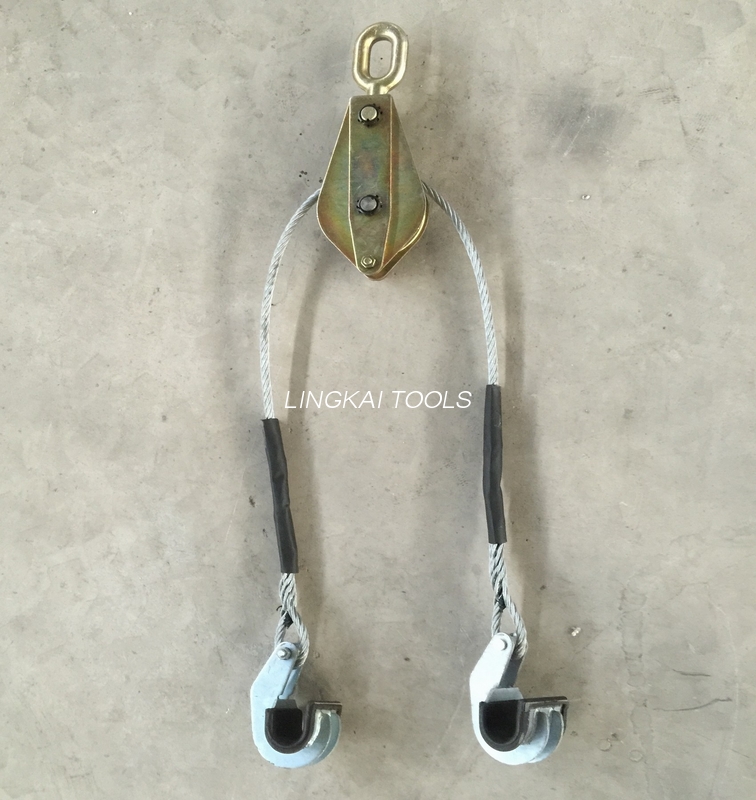

Application: Conductor Lifting Tools are used for lifting 2 bundled conductors on transmission line in sagging operation or maintenance operation.
Note: Groove of hook is covered with an aluminum lining to eliminate damage to the conductor
Lifting Tools for 4 Bundled Conductors
| Item No. | Model | Work load (KN) | Lining Length (mm) | Weight (kg) |
| 19115 | ST50S | 4 x 12 | 120 | 35 |
| 19116 | ST100S | 4 x 25 | 200 | 67 |
| 19117 | ST160S | 4 x 40 | 260 | 97 |
Application: Conductor Lifting Tools are used for lifting four bundled conductors on transmission line in sagging operation or maintenance operation.
Note: Groove of hook is covered with an aluminum lining to eliminate damage to the conductor.
