Product Details
Place of Origin: Lingkai
Brand Name: Lingkai
Certification: ISO
Model Number: SKDZ-1 SKDZ-2 SKGF-3 SKGF-6
Payment & Shipping Terms
Minimum Order Quantity: 5sets
Price: get the latest
Packaging Details: wooden case packing
Delivery Time: 3-8 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 10000 pcs/month
Diameter Of Conductor: |
Max 30mm |
Material Of Clamps: |
Aluminum Alloy Or Alloy Steel |
Type Of Come Along Clamp: |
Automatic Or Bolted |
Working Load:: |
Max 10 Ton |
Description: |
Wire Grips |
Model: |
SKDZ-1 SKDZ-2 SKGF-3 SKGF-6 |
Diameter Of Conductor: |
Max 30mm |
Material Of Clamps: |
Aluminum Alloy Or Alloy Steel |
Type Of Come Along Clamp: |
Automatic Or Bolted |
Working Load:: |
Max 10 Ton |
Description: |
Wire Grips |
Model: |
SKDZ-1 SKDZ-2 SKGF-3 SKGF-6 |

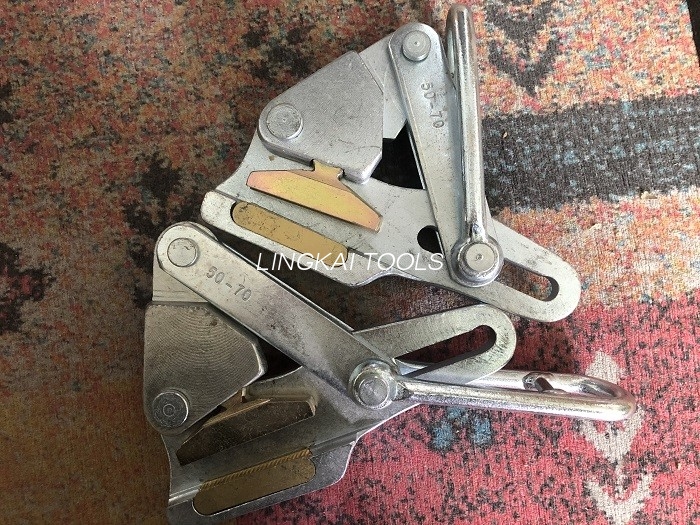

SKDZ Model Ground Wire Grips (Automatic come along clamps for earth wires)
| Item No. | Model | Rated Load (KN) | Breaking Load (KN) | Wire Size Range (mm²) | Max. Opening (mm) | Weight (kg) |
| 13101 | SKDZ-0.5 | 5 | 10 | 10-25 | 10 | 2 |
| 13102 | SKDZ-1 | 10 | 20 | 25-50 | 12 | 2 |
| 13103 | SKDZ-2 | 20 | 40 | 50-70 | 14 | 2.9 |
| 13104 | SKDZ-3 | 30 | 60 | 70-120 | 16 | 3.5 |
| 13105 | SKDZ-5 | 50 | 100 | 150-185 | 20 | 6.3 |
Application: It is used for sagging of earth wires and adjustment of guy wires.
Material: It is forged from high quality alloy stee, light weight and can hold the ground wire well.
SKDS Dual Cam Type Earth Wire Grips
| Item No. | Model | Rated Load (KN) | Breaking Load (KN) | Wire Size Range (mm²) | Max. Opening (mm) | Weight (kg) |
| 13141 | SKDS-1 | 10 | 20 | 25-50 | 11 | 2.6 |
| 13142 | SKDS-2 | 20 | 40 | 70-120 | 13 | 3.1 |
| 13143 | SKDS-3 | 30 | 60 | 95-150 | 15 | 4.1 |
Application: used for tensioning of earth wires and adjustment of guy wires. The gripping pressure of two knurled cams is applied to stranded steel wires.
Bolted Type Wire Grips for Anti twisting Steel Wire Rope
| Item No. | Model | Rated Load (KN) | Accommodated Steel Rope Size Range (mm) | Weight (kg) |
| 13161 | SKG-4 | 40 | Φ13-15 | 6 |
| 13162 | SKG-7 | 70 | Φ16-18 | 10 |
| 13163 | SKG-10 | 100 | Φ19-20 | 15 |
| 13171 | SKF-2 | 20 | Anti Twist wire rope, 7-9 mm | 3 |
| 13172 | SKF-3 | 30 | Anti Twist wire rope, 11-13 mm | 4.5 |
| 13173 | SKF-5 | 50 | Anti Twist wire rope, 13-15 mm | 7.5 |
| 13174 | SKF-6 | 60 | Anti Twist wire rope, 16-18 mm | 9 |
| 13175 | SKF-8 | 80 | Anti Twist wire rope, 19-21 mm | 12 |
| 13176 | SKF-10 | 100 | Anti Twist wire rope, 22-24 mm | 15 |
Note: It is used for holding the normal wire rope, or anti twisting braided steel wire rope. It is forged from high strength alloy steel. The special wrench is supplied with the wire grips.
Wire Grips (Come along clamps) for Insulated Conductor
| Item No. | Model | Rated Load (KN) | Wire Size Range (mm²) | Max. Opening (mm) | Weight (kg) | Material |
| 13181 | SKJ-0.5 | 5 | Φ6-10 | 12 | 1.35 | Steel |
| 13182 | SKJL-0.5 | 0.8 | Alum. alloy | |||
| 13191 | SKJ-1 | 10 | Φ10-14 | 15 | 2.9 | Steel |
| 13192 | SKJL-1 | 1.5 | Alum. alloy | |||
| 13201 | SKJ-1.5 | 15 | Φ14-20 | 22 | 3.9 | Steel |
| 13202 | SKJL-1.5 | 2 | Alum. alloy | |||
| 13211 | SKJ-2 | 20 | Φ20-25 | 27 | 6.5 | Steel |
| 13212 | SKJL-2 | 3.1 | Alum. alloy | |||
| 13213 | SKJLA-2 | 20 | Φ25-29 | 31 | 3.5 | Alum. alloy |
Feature: The serpentine jaws of the grips are used for allowing insertion of insulated conductor through the jaws. The special jaw design provides positive grip and excellent protection of insulation.
