Product Details
Place of Origin: Ningbo China
Brand Name: Lingkai
Certification: ISO CE
Model Number: SHD/SHDN
Payment & Shipping Terms
Minimum Order Quantity: 10 sets
Price: get the latest
Packaging Details: wooden case/ container
Delivery Time: 3-10 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 5000 sets/month
Size: |
Standard/customized |
Sheave: |
Aluminum/nylon |
Suitable Conductor: |
25-500sqmm |
Application: |
Stringing Line |
Size: |
Standard/customized |
Sheave: |
Aluminum/nylon |
Suitable Conductor: |
25-500sqmm |
Application: |
Stringing Line |
Use and Characteristic
Apply to pull conductor on straight pole.Splicing sleeve,steel wire rope and connector can pass through the groove.
Pulley Block With Hook Single Sheave is used for releasing the aluminum wire, ACSR, insulated wire in pole and tower erection.
The wheel groove can be through with clamp pipe, aluminum tube, connector etc..
The material is aluminum alloy and MC nylon .
Pulley pendant is combined plate and hook type.

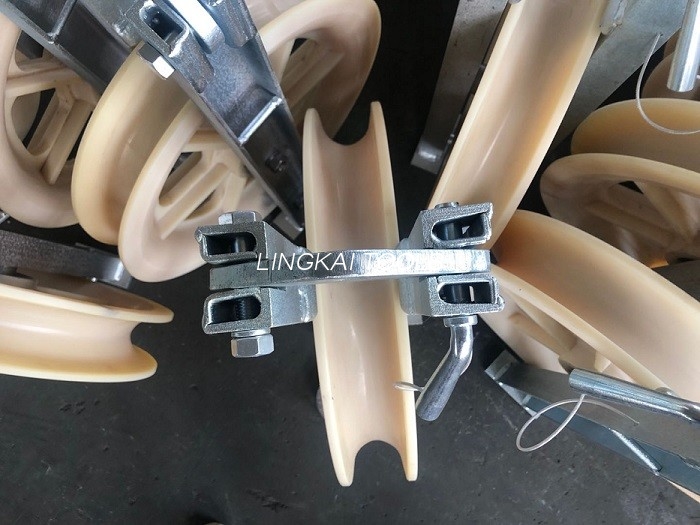

The stringing roller is suitable to string single stranded aluminum and ACSR conductors on tangent structures in overhead transmission line.
The sheaves of stringing block are made of aluminum alloy lined with neoprene or high strength MC nylon. All the sheaves are mounted on ball bearings. The frame of block is made of galvanized steel
| Item number | Model | Suitable conductor |
Rated load (kN) |
Weight (kg) |
Remark |
| 10171 | SHD-120×30 | LGJ25～70 | 5 | 1.5 | Aluminium sheave |
| 10172 | SHD-160×40 | LGJ95～120 | 10 | 2.5 | |
| 10173 | SHD-200×40 | LGJ150～240 | 15 | 4 | |
| 10174 | SHD-200×60 | LGJ150～240 | 15 | 4.6 | |
| 10175 | SHD-250×40 | LGJ150～240 | 20 | 4.6 | |
| 10176 | SHD-250×60 | LGJ300～400 | 20 | 6 | |
| 10177 | SHD-270×60 | LGJ300～400 | 20 | 7 | |
| 10178 | SHD-320×60 | LGJ300～400 | 20 | 9.5 | |
| 10179 | SHD-400×80 | LGJ400～500 | 20 | 15 | |
| 10191 | SHDN-120×30 | LGJ25～70 | 5 | 1.5 | Nylon sheave |
| 10192 | SHDN-160×40 | LGJ95～120 | 10 | 2.5 | |
| 10193 | SHDN-200×40 | LGJ150～240 | 15 | 3.6 | |
| 10194 | SHDN-200×60 | LGJ150～240 | 15 | 4 | |
| 10195 | SHDN-250×40 | LGJ150～240 | 20 | 4 | |
| 10196 | SHDN-250×60 | LGJ300～400 | 20 | 4.5 | |
| 10197 | SHDN-270×60 | LGJ300～400 | 20 | 5.6 | |
| 10198 | SHDN-320×60 | LGJ300～400 | 20 | 6.7 | |
| 10198-1 | SHDN-320×80 | LGJ300～400 | 20 | 8 | |
| 10199 | SHDN-400×80 | LGJ400～500 | 20 | 13 | |
| 10199-1 | SHDN-400×100 | LGJ400～500 | 20 | 15 | |
| 10199-2 | SHDN-400×120 | LGJ400～500 | 20 | 18 |
