Product Details
Place of Origin: Ningbo China
Brand Name: Lingkai
Certification: ISO CE
Model Number: SLX
Payment & Shipping Terms
Minimum Order Quantity: 5 sets
Price: get the latest
Packaging Details: wooden case
Delivery Time: 3-10 work days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 50000sets/month
Name: |
Swivel Joint |
Model: |
SLX |
Bearing: |
Germany |
Material: |
Steel |
Rated Load: |
MAX 25T |
Feature: |
Can Be Customized |
Name: |
Swivel Joint |
Model: |
SLX |
Bearing: |
Germany |
Material: |
Steel |
Rated Load: |
MAX 25T |
Feature: |
Can Be Customized |

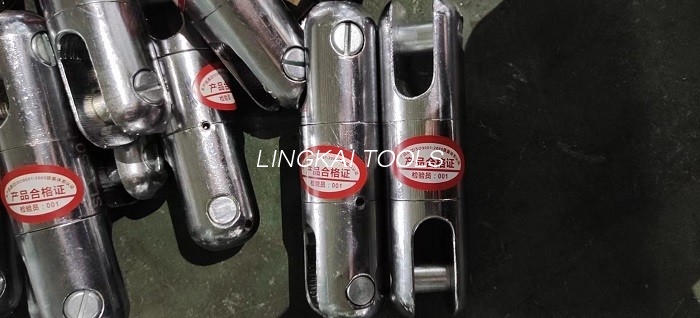

Model SLX Connect Pulling Wire Rope Connecting Rotary Cable Connector Swivel Joint
Feature 1.High strength, light weight, and good looking.
2. It smoothly can pass through the corners, pulley, tension machine, traction machine and other equipments.
Applicatoin Fixed Joint Anti-twist Connector is suitable to traction of connecting anti-twisting wire rope.In transmission line, traction of wire or underground cables,
it is used to connect with the net sleeve and wire rope, in order to release wire rope twisting.transmission line, traction of wire or underground cables, it is used to connect with the net sleeve and wire rope, in order to release wire rope twisting.
| Item number | Model |
Rated Load (KN) |
Main Size (mm) |
Weight (Kg) |
||||
| A | B | C | D | E | ||||
| 17121 | SLX-0.5 | 5 | 19 | 61 | 40 | 8 | 9 | 0.20 |
| 17122 | SLX-1 | 10 | 30 | 100 | 70 | 12 | 13 | 0.40 |
| 17123 | SLX-2 | 20 | 35 | 120 | 90 | 14 | 14 | 0.55 |
| 17124 | SLX-3 | 30 | 37 | 129 | 95 | 16 | 16 | 0.65 |
| 17125 | SLX-5 | 50 | 42 | 154 | 116 | 18 | 17 | 1.50 |
| 17126 | SLX-8 | 80 | 57 | 220 | 165 | 24 | 22 | 2.40 |
| 17127 | SL130 | 130 | 62 | 248 | 192 | 26 | 24 | 3.50 |
| 17128 | SL180 | 180 | 75 | 294 | 222 | 26 | 26 | 7.20 |
| 17129 | SL250 | 250 | 85 | 331 | 251 | 30 | 30 | 10.5 |
| 17130 | SL250V | 250 | 80 | 323 | 243 | 30 | 30 | 8.0 |
