Product Details
Place of Origin: Ningbo China
Brand Name: Linkai
Certification: ISO
Model Number: 12-A 12-B
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: Get the latest
Packaging Details: Std exported packing
Delivery Time: 5-8work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 200sets/month
Item: |
09171 |
Model: |
12-A |
Ground Clearance: |
150mm |
Travel Speed: |
3-13 KM/H |
Weight: |
550kg |
Traction Force: |
6 T |
Item: |
09171 |
Model: |
12-A |
Ground Clearance: |
150mm |
Travel Speed: |
3-13 KM/H |
Weight: |
550kg |
Traction Force: |
6 T |

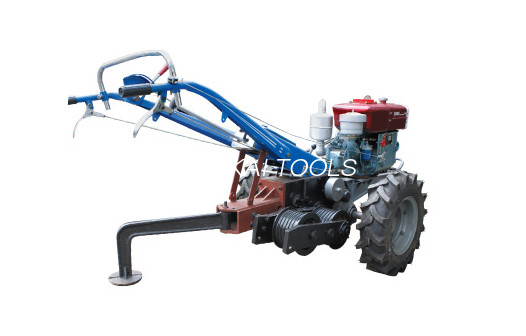

Tractor Type 5 Ton Diesel Tractor Cable Puller Winch Walking Tractor Winch
Easy Operate 5 Ton Diesel Engine Driven Walking Tractor Winch for Cable Pulling
Configuration:
Restructured from the model 12 hand tractor,simple structure, easy operation widely used for pylon-conductor setting in power line construction .
Application
5 Ton Diesel Tractor Cable Puller Winch Walking Tractor Winch is used for stringing wire in electrical power line construction, crane lifting.
Walking Tractor Winch
| Item number | Model |
(MM) Ground Clearance |
(MM) wheel-base |
(HP) Power |
(RPM) speed |
(KM/H) Travel speed |
(MM) Outline size |
(KG) Weight |
| 09171 | 12-A | 150 | 1040 | 15 | 2000 | 3-13 | 2670x1040x1300 | 550 |
| 09172 | 12-B | 150 | 1040 | 15 | 2000 | 3-13 | 2670x1040x1300 | 600 |
| Gear | Ⅰ | Ⅱ | Ⅲ | Ⅳ | reversalⅡ | reversalⅡ |
|
(T) Traction force |
60 | 37 | 20 | 12 | / | / |
|
(M/MN) Traction speed |
11.7 | 18.9 | 34.4 | 55.6 | 6.2 | 21.3 |
