Place of Origin: NINGBO
Brand Name: LINGKAI
Certification: ISO
Model Number: 12-A;12-B
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: get the latest
Packaging Details: exported packing
Delivery Time: 3-8 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 200 sets/month
Model: |
12-A;12-B |
Name: |

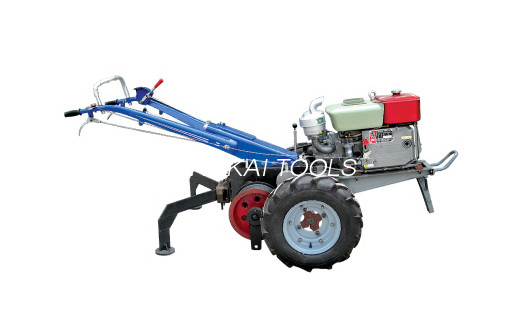

Walking Tractor Winch |
Power: |
15HP |
Speed Rpm: |
2000 |
Model: |
12-A;12-B |
Name: |
Walking Tractor Winch |
Power: |
15HP |
Speed Rpm: |
2000 |
Application
Fast Speed Double Drum Winch Tractor For Pulling and Lifting During Tower Erection is applicable to pull no-twist wire rope.
Features
Four gear,forward gear and reverse gear
Double drum,seven groove,protect the wire rope
speedy and convenient
The grinding of walking tractor is reformed from 12 type walking tractor.
| Item number | Model |
Ground Clearance(MM) |
wheel-base(MM) | Power(HP) | speed(RPM) | Travel speed(KM/H) |
Outline size(MM) |
Weight(KG) |
| 09171 | 12-A | 150 | 1040 | 15 | 2000 | 3-13 | 2670x1040x1300 | 550 |
| 09172 | 12-B | 150 | 1040 | 15 | 2000 | 3-13 | 2670x1040x1300 | 600 |
| Gear | Ⅰ | Ⅱ | Ⅲ | IV | reversalⅠ | reversalⅡ |
| Traction force(T) | 60 | 37 | 20 | 12 | / | / |
| Traction speed(M/MN) | 11.7 | 18.9 | 34.4 | 55.6 | 6.2 | 21.3 |
