Product Details
Place of Origin: Ningbo China
Brand Name: Lingkai
Certification: ISO CE
Model Number: 1160 mm pulleys
Payment & Shipping Terms
Minimum Order Quantity: 10 sets
Price: get the latest
Packaging Details: wooden case/ container
Delivery Time: 3-10 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 5000 sets/month
Sheave Dimension: |
Φ1160×Φ1000×130 |
Max ACSR: |
ACSR1250 |
Rated Load Max: |
120KN |
Sheave: |
MC NYLON |
Sheave Dimension: |
Φ1160×Φ1000×130 |
Max ACSR: |
ACSR1250 |
Rated Load Max: |
120KN |
Sheave: |
MC NYLON |
This 1160mm Large Diameter Stringing Block has the conductor diameter of no more than LGJ1250. That is to say, the aluminum of this conducting wire can possess the maximum cross section of 1250 square millimeters. The block dimension (outside diameter*root diameter*sheave width) is Φ1160×Φ1000× 150 (mm).
1.Maximum suitable conductor ACSR1250
2.Sheave dimension ( outside diameter× root diameter × sheave width) Φ1160×Φ1000×150(mm).
3.Sheave dimension for steel wire rope
(outside diameterx root diameter x sheave width) Φ1160×Φ1000×130(mm)
4.Strengthening type three sheave,cast steel sheave for middle sheave.

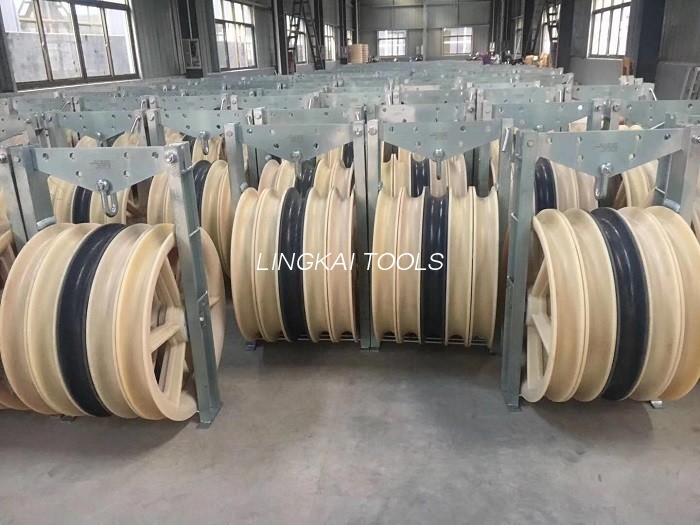

Customized Cable Pulley Block Plastic Guide Pulley 1-3 Sheave 1160mm Diameter
| Item number | Model | Number of sheave | Rated load (kN) | Weight (kg) |
Feature |
| 10168-1 | SHDN1160 | 1 | 60 | 65 | Middle :MC nylon sheave |
| 10168-2 | SHSQNK1160 | 3 | 120 | 220 | Middle :MC nylon sheave Conductor: rubber lined MC nylon sheave |
