Transmission Line Motorised Pulling Winch 3 Ton With Double Capastans

Product Details

Place of Origin: NINGBO CHINA

Brand Name: LINGKAI

Certification: ISO

Model Number: JJCS-30 JJQS-30

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: get the latest

Packaging Details: wooden case packing

Delivery Time: 7-10 days

Payment Terms: T/T, L/C, Western Union

Supply Ability: 50 sets/month

Get Best Price
Product Details
Highlight:

Motorised Pulling Winch 3 Ton

,

Transmission Line Motorised Pulling Winch

,

Double Capastans Motorised Winch

Model:
JJCS-30 JJQS-30
Engine:
Diesel Engine R175 Honda GX270
Engine Power(hp):
6 &9
Pull Force (KN) / Pull Speed (m/min):
Four Shifts
Model:
JJCS-30 JJQS-30
Engine:
Diesel Engine R175 Honda GX270
Engine Power(hp):
6 &9
Pull Force (KN) / Pull Speed (m/min):
Four Shifts
Product Description

Motorised Pulling Winches are used for pulling single conductor or OPGW, earth wire in transmission line stringing operation. It is also used for pulling wire rope for tower erection and lifting goods on tower. It is equipped with two capstans for using anti twisting steel wire rope on it, so it can be used for pulling conductor or OPGW in mountain area. 3 ton and 5 ton winches are light for transporation.

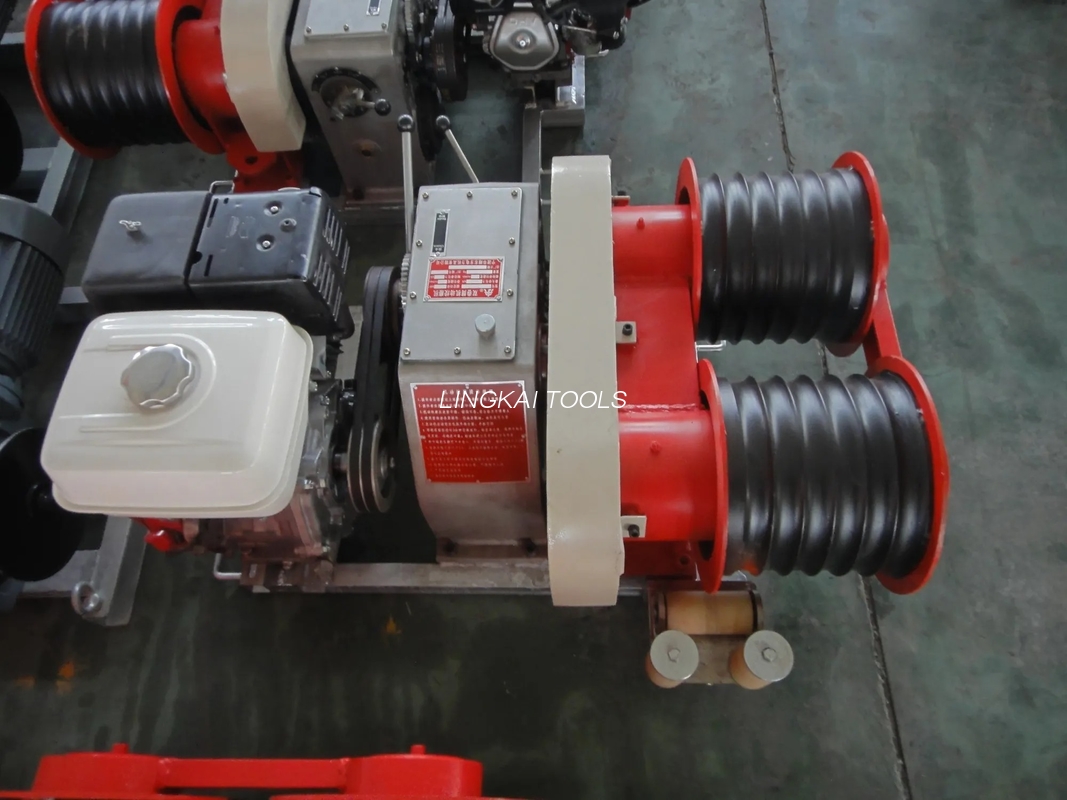

Transmission Line Motorised Pulling Winch 3 Ton With Double Capastans 0

Dull-bull Wheel Winches (3T)

Item No. 09151 09152
Model JJCS-30 JJQS-30
Engine Model Diesel engine R175 Honda GX270
Engine Power(hp) 6 9
Engine Speed (rpm) 2600 3000
Pull force (KN) / Pull speed (m/min) I shift 30/5.7 30/7.43
II shift 18.9/9.1 19.2/11.8
III shift 7.6/22.7 7.2/31.4
Reverse shift -/6.5 -/8.4
Diameter of Capstan (mm) Φ240 Φ240
Dimension (mm) 1000 x 670 x 600 1000 x 670 x 600
Weight (kg) 260 242

Application: It is used for tower erection, hoisting goods, conductor or earth wire stringing operation in line construction.
Features: Dual-bull wheel structure could minimize the damage to steel ropes, so it can be used with anti twisting wire rope. It is equipped with mechanical automatic brake system. Light weight, easy to operate and maintain.



Transmission Line Motorised Pulling Winch 3 Ton With Double Capastans 1
