Product Details
Place of Origin: NINGBO CHINA
Brand Name: LINGKAI
Certification: ISO
Model Number: JJCS-50T
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: get the latest
Packaging Details: exported packing
Delivery Time: 7-10 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 50 sets/month
Diesel Engine Power (KW): |
9 |
Diesel Engine Model: |
S195G |
Diesel Engine Speed (rpm): |
2000 |
Diameter Of Capstan (mm): |
Φ300 |
Dimension (mm): |
2230 X 1210 X 1135 |
Weight (kg): |
700kgs |
Diesel Engine Power (KW): |
9 |
Diesel Engine Model: |
S195G |
Diesel Engine Speed (rpm): |
2000 |
Diameter Of Capstan (mm): |
Φ300 |
Dimension (mm): |
2230 X 1210 X 1135 |
Weight (kg): |
700kgs |

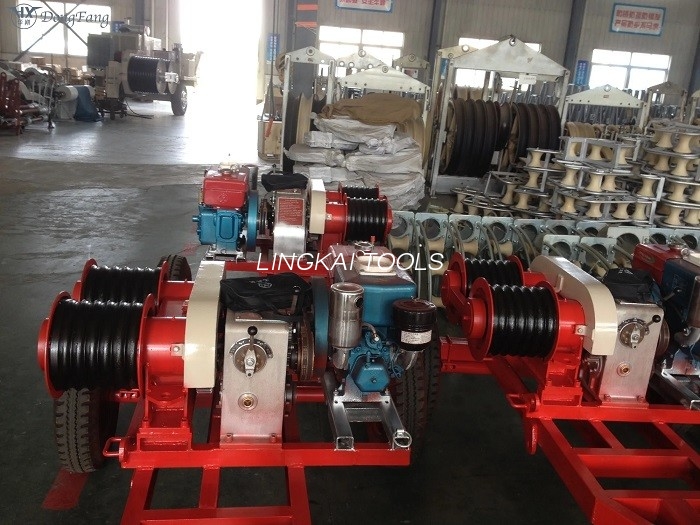

5 Ton double wheels Motorised pulling winch JJCS-50T is specially designed for transmission line construction. It can be used for tower erection, conductor stringing, cable pulling, goods lifting etc. It is equipped with diesel engine, and automatic brake system.
Dull-bull Wheel Winches (5T) JJCS-50T
| Item No. | 09162 | |
| Model | JJCS-50T | |
| Diesel Engine Power (KW) | 9 | |
| Diesel Engine Model | S195G | |
| Diesel Engine Speed (rpm) | 2000 | |
| Pull force (KN) / Pull speed (m/min) | I, III shift | 50/3.1, 40/9.6 |
| II, V shift | 45/7.1, 17/22.3 | |
| IV, VI shift | 33/11.3, 10/35.6 | |
| Reverse shift | -/7.35 | |
| Diameter of Capstan (mm) | Φ300 | |
| Dimension (mm) | 2230 x 1210 x 1135 | |
| Weight (kg) | 700 | |
Application: It is used for tower erection, hoisting goods, conductor and earth wire (OPGW)
stringing operation in power & telecom line construction.
Features: Winch is equipped with two capstans, for pulling conductors with anti twisting steel wire rope. The winches are mounted on the trailer, could be dragged in short distance.
It is equipped with mechanical automatic brake system. Light weight, easy to operate and maintain.
