Product Details
Place of Origin: NINGBO CHINA
Brand Name: NBLK
Certification: ISO
Model Number: JJCS50
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: GET THE LATEST
Packaging Details: WOODEN CASE
Delivery Time: 3-5DAYS
Payment Terms: T/T
Supply Ability: 200SETS/MONTH
Engine: |
S195G Diesel |
Function: |
Stringing Conductor Wires,laying Cables |
Drum Bottom Of Groove Diameter: |
300mm |
Strength: |
5T |
Rmp Speed: |
2000 |
Power HP: |
9 |
Weight: |
700kgs |
Engine: |
S195G Diesel |
Function: |
Stringing Conductor Wires,laying Cables |
Drum Bottom Of Groove Diameter: |
300mm |
Strength: |
5T |
Rmp Speed: |
2000 |
Power HP: |
9 |
Weight: |
700kgs |
This manual provides essential information on how to properly operate and maintain the diesel engine powered winch. It is important to adhere to these instructions in order to achieve optimal performance and ensure that the machine is functioning correctly.
While we are committed to constantly improving our products, please be aware that materials and specifications may be subject to change without notice or obligation. As such, it is important to stay updated with any potential changes that may impact the use or maintenance of your winch.
| Item number | 09162B | 09154 | 09162 | |
| Model | JJCS-50J | JJQS-50J | JJCS-50T | |
| Engine | Model | KF186FA Diesel Engine | Honda 390 Gasoline Engine |
S195G Diesel Engine |
| Power(KW) | 6.3 | 6.6 | 9 | |
| Speed(rpm) | 2600 | 3600 | 2000 | |
|
Pull force(KN)/ speed (m/Min) |
Slow | 50/6 30/10 | 50/6 30/10 | 50/3.1,40/9.6 |
| Moderate | / | / | 45/7.1 17/22.3 | |
| Fast | 13/23 10/30 | 13/23 10/30 | 33/11.3 10/35.6 | |
| Reverse | -/5 -/17 | -/5 -/17 | -/7.35 | |
| Drum bottom of groove diamete(mm) | Φ230 | Φ230 | Φ300 | |
| Outline size (mm) | 1280x770x600 | 1280x770x600 | 2440x1300x1140 | |
| Weight(kg) | 280 | 270 | 700 | |

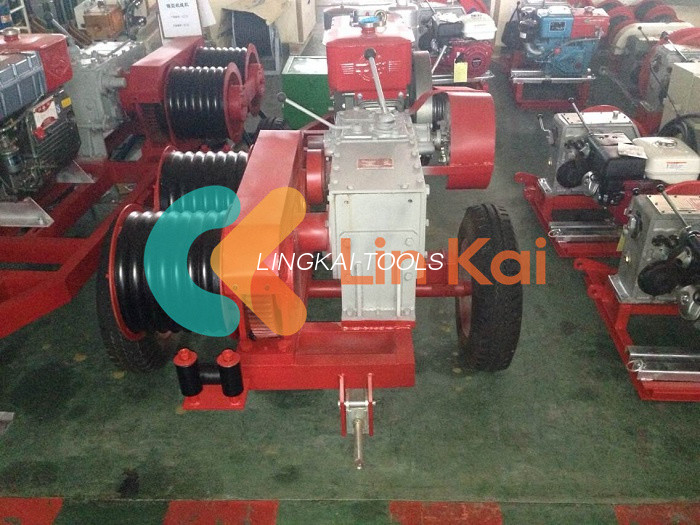

The JJCS 50 Diesel Engine Double Drum Winch Trailer is a specialized piece of equipment designed to handle heavy-duty lifting and towing. Anyone who requires a reliable trailer that goes the distance and handles the most demanding tasks could utilize this specialized equipment. The following are some essential features and characteristics you should be aware of:
A double drum winch is a versatile machine that finds application in many areas such as power transmission and distribution engineering, telephone construction tower erection, and hoisting tools. It can be used for traction cable, line, tower erection, pole setting, and stringing wire in electrical power line construction. This machine is driven by a belt which prevents overload damages effectively.
The double drum structure of the winch reduces wire rope damages during traction. The machine can be powered by either diesel or gasoline power as demanded by the user. The jjcs-50t model of double drum winch is equipped with at least 6 traction gears. Different traction forces correspond to different traction speeds. The winch's rack can be installed on a trailer to enable easy transportation.
| Features | Specifications |
|---|---|
| Structure | Double drum |
| Power Source | Diesel power or gasoline power |
| Model | jjcs-50t |
| Traction gears | Up to 6 |
| Traction speed | Depends on the traction force and gear |
| Rack | Installed on a trailer for easy transport |
The JJCS 50 Diesel Engine Double Drum Winch Trailer is a versatile and efficient tool in various construction and maintenance scenarios. This winch trailer is designed to facilitate power transmission and distribution engineering, telephone construction and tower erection, traction cable and line installation, hoisting, and pole setting tasks.
For power transmission and distribution engineering, the winch trailer helps in laying and stringing conductors, installing wires, and other tasks related to setting up a power distribution network. Telephone construction and tower erection also require efficient and safe tools to lift and install poles, towers, and other components. The JJCS 50 Diesel Engine Double Drum Winch Trailer's mobility and high load-carrying capacity provides a reliable solution, resulting in faster and safer execution.
Traction cable and line installation is another challenging task that requires careful planning and the right equipment. The winch trailer is designed to carry heavy loads, making it ideal for hauling electric cables, wires, and other heavy equipment. Hoisting and pole setting tasks are also simplified with the JJCS 50 Diesel Engine Double Drum Winch Trailer, allowing for quick installation of poles and other structures.
Overall, the JJCS 50 Diesel Engine Double Drum Winch Trailer is a valuable tool in various construction and maintenance scenarios. Its design features are tailored to meet the demands of different tasks, improving efficiency and safety while reducing the risk of work injuries and accidents.
Our Conductor Stringing Tools come with comprehensive technical support to ensure that you get the most out of your investment. We offer a range of services, including:
Our team of experts is always available to answer any questions you may have and provide guidance on how to optimize your stringing tools for your specific needs. We are committed to delivering the highest level of customer satisfaction and ensuring that your Conductor Stringing Tools continue to perform at their best for years to come.
