Product Details
Place of Origin: Ningbo China
Brand Name: Lingkai
Certification: ISO
Model Number: Anti-twisting wire rope
Payment & Shipping Terms
Minimum Order Quantity: 1000 M
Price: get the latest
Packaging Details: Steel drum packing
Delivery Time: 15 days
Payment Terms: T/T, Western Union
Supply Ability: 100000 M/month
Packing: |
Steel Drum |
ANTI TWIST WIRE ROPE: |
13 Mm |
Standard Length: |
1000 Meters Optional |
Lubrication: |
Optional |
Diameter Of Strand: |
3.0 Mm |
Rated Load: |
115 KN |
Packing: |
Steel Drum |
ANTI TWIST WIRE ROPE: |
13 Mm |
Standard Length: |
1000 Meters Optional |
Lubrication: |
Optional |
Diameter Of Strand: |
3.0 Mm |
Rated Load: |
115 KN |
We designed and produced our own braiding machines for 8 strands, 12 strands and 18 strands anti twisting steel wire rope. Our machines have features of fast speed, tight braiding force, balance braiding speed and force between strands.
Anti twisting steel rope is specially braided from 12 strands of high strength, high flexible galvanized steel wire. The braided steel strand has high flexibility, complete stability to rotation under tension force.

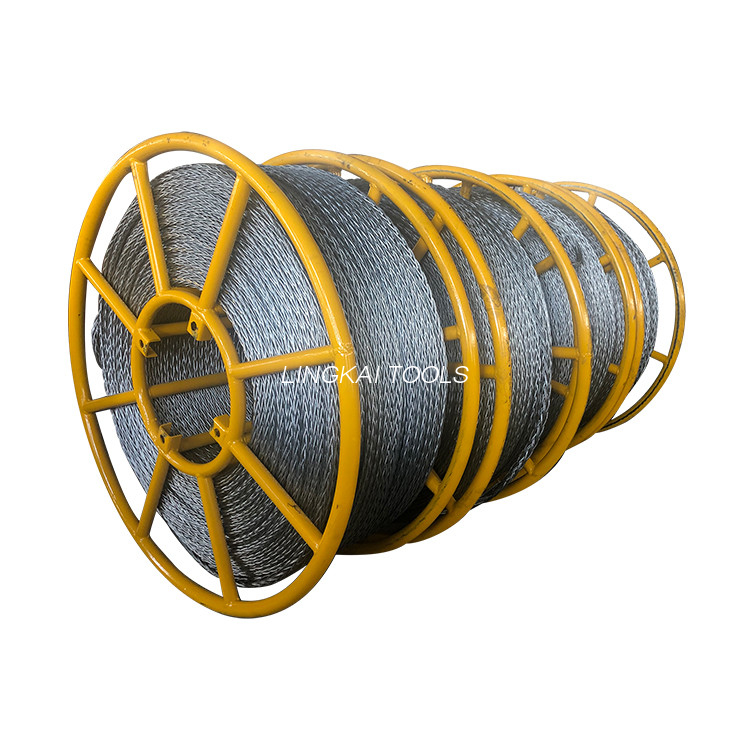

It can homogeneously distribute the pressure between the elementary wires. The special rope can increase efficiency during the overhead transmission line stringing work. The rope is packed in steel drum which can be installed directly on the reel winder of puller.
12 Strands Anti twisting braided steel wire rope
| Item No. | Nominal diameter | Breaking Load (KN) | Single strand diameter (mm) | Normal T/S (N/mm²) | Net Weight (kg/1000m) | |
| 18201A | 9mm | 50 kN | 2.0mm | 1960 | 250 | |
| 18202A | 10mm | 70 kN | 2.3mm | 1960 | 356 | |
| 18203A | 11 mm | 85 kN | 2.5mm | 1960 | 410 | |
| 18204A | 12 mm | 100 kN | 2.8mm | 1960 | 510 | |
| 18205A | 13 mm | 115 kN | 3.0mm | 1960 | 620 | |
| 18206A | 14 mm | 130 kN | 3.2mm | 1960 | 710 | |
| 18207A | 15mm | 143 kN | 3.3mm | 1960 | 770 | |
| 18208A | 16mm | 160 kN | 3.5mm | 1960 | 800 | |
| 18209A | 18mm | 206 kN | 4.0mm | 1960 | 1060 | |
| 18210A | 19mm | 236 kN | 4.3mm | 1960 | 1210 | |
| 18211A | 20mm | 266 kN | 4.5mm | 1960 | 1310 | |
| 18212A | 22 mm | 316 KN | 4.8 mm | 1960 | 1500 | |
| 18213 | 23 mm | 342 KN | 5.0 mm | 1960 | 1650 | |
| 18213A | 24 mm | 360 KN | 5.2 mm | 1960 | 1800 | |
| 18214A | 26 mm | 400 KN | 5.4 mm | 1960 | 1950 | |
| 18215A | 28 mm | 462 KN | 6.0 mm | 1960 | 2020 | |
