Product Details
Place of Origin: NINGBO CHINA
Brand Name: Lingkai
Certification: ISO
Model Number: J240B J400B J630B J1000B
Payment & Shipping Terms
Minimum Order Quantity: 10 pcs
Price: get the latest price
Packaging Details: plywood case
Delivery Time: 5-8 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 20000 pcs/month
Model: |
J240-1250,J55G-J150G |
Joint Size: |
Length According To Requirement |
Max. Conductor Size: |
ACSR 1200 Mm2 |
Description: |
ACSR/Steel Strand Sleeve Protector |
Ground Wire Size: |
Max. 150 Mm2 |
Packing: |
Plywood Case |
Model: |
J240-1250,J55G-J150G |
Joint Size: |
Length According To Requirement |
Max. Conductor Size: |
ACSR 1200 Mm2 |
Description: |
ACSR/Steel Strand Sleeve Protector |
Ground Wire Size: |
Max. 150 Mm2 |
Packing: |
Plywood Case |

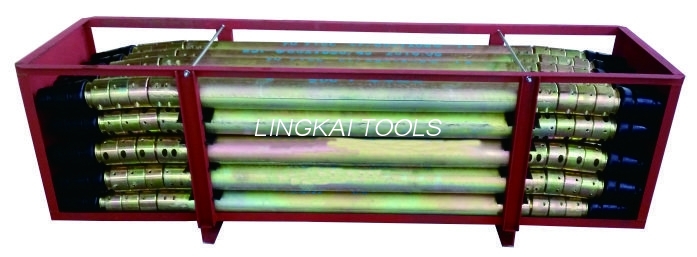

Splice Protection Sleeves ACSR Steel Strand Splicing Sleeve Protector
Conductor Joint Protectors are used to protect the compression sleeve joints for ACSR conductor or Ground wire joint in line stringing operation.
Application: Designed to protect the compression sleeve joints for ACSR conductor in line stringing operation, and make them pass through stringing blocks safely.
The product is made of high strength steel and good quality rubber, to protect the joint well
Conductor Joint Protectors
| Item No. | Model | Dimension (mm) | Conductor Size (mm²) | |||
| D | L | d | L1 | |||
| 17201 | J240B | Φ45 | 850 | Φ38 | 530 | ACSR240/55 |
| 17202 | J300B | Φ51 | 940 | Φ43 | 600 | ACSR300/50 |
| 17203 | J400B | Φ57 | 995 | Φ47 | 655 | ACSR400/50 |
| 17204 | J500B | Φ68 | 1080 | Φ56 | 740 | ACSR500/65 |
| 17205 | J630B | Φ83 | 1180 | Φ63 | 800 | ACSR630/55 |
| 17206 | J720B | Φ83 | 1196 | Φ63 | 816 | ACSR720/50 |
| 17207 | J900B | Φ89 | 1180 | Φ73 | 800 | ACSR900/75 |
| 17208 | J1000B | Φ89 | 1240 | Φ73 | 860 | ACSR1000/80 |
Ground Wire Joint Protectors
| Item No. | Model | Dimension (mm) | GROUND WIRE Size (mm²) | |||
| D | L | d | L1 | |||
| 17213 | J55G | Φ30 | 450 | Φ24 | 280 | 50/55 |
| 17214 | J70G | Φ30 | 510 | Φ24 | 340 | 65/70 |
| 17215 | J80G | Φ34 | 510 | Φ27 | 340 | 80 |
| 17216 | J95G | Φ34 | 585 | Φ27 | 415 | 95 |
| 17217 | J100G | Φ38 | 590 | Φ28 | 390 | 100 |
| 17218 | J120G | Φ40 | 660 | Φ30 | 440 | 120 |
| 17219 | J150G | Φ45 | 850 | Φ37 | 530 | 150/ ACSR70/95 |
Application: Designed to protect the compression sleeve joints for ground wire in line stringing operation, and make them pass through stringing blocks safely.
The product is made of high strength steel and good quality rubber, to protect the joint well.
