Product Details
Place of Origin: NINGBO CHINA
Brand Name: Lingkai
Certification: ISO
Model Number: SLWG
Payment & Shipping Terms
Minimum Order Quantity: 10 pcs
Price: get the latest
Packaging Details: plywood case
Delivery Time: 5-8 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 20000 pcs/month
Name: |
OPGWDASS Mesh Sock Joints |
Working Load: |
10-30KN |
Max. Breaking Force: |
60KN |
OPGW Diameter: |
8-25mm |
Description Of Product:: |
OPGW Socket Pulling Grips |
Length: |
Be Customized |
Name: |
OPGWDASS Mesh Sock Joints |
Working Load: |
10-30KN |
Max. Breaking Force: |
60KN |
OPGW Diameter: |
8-25mm |
Description Of Product:: |
OPGW Socket Pulling Grips |
Length: |
Be Customized |

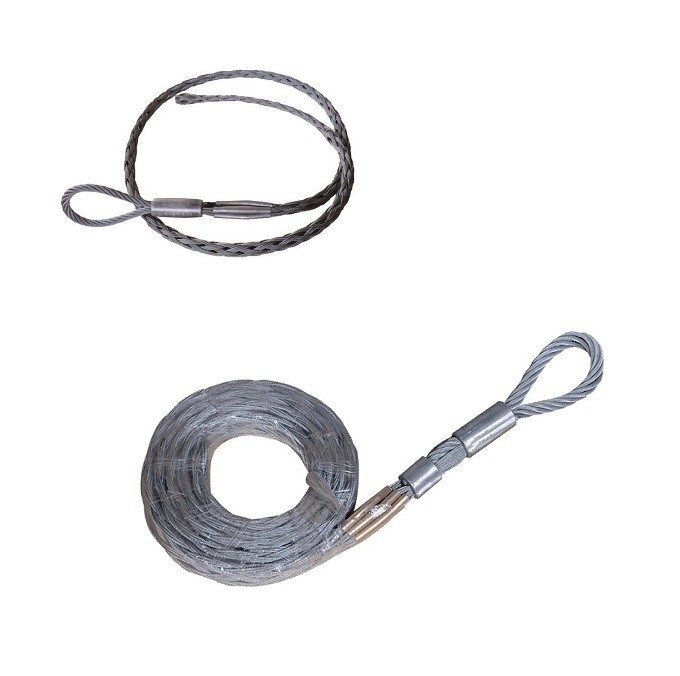

Single head type temporary conductor mesh sock joints
OPGW Socket Pulling Grips are used for pulling OPGW cable or earth wire in installation or stringing of OPGW or earth wire on overhead power line.
OPGW Pulling Grips (Mesh Socket Joints)
| Single head Item No. | Model | OPGW Size (mm) | Load (KN) | |
| Normal | Rated | Break | ||
| 20105 | SLWG-1 | 10-20 | 10 | 30 |
| 20105A | SLWGS-1 | 10-20 | 10 | 30 |
| 20106 | SLWG-2 | 20-25 | 20 | 60 |
| 20106A | SLWGS-2 | 20-25 | 20 | 60 |
Application: length 1.2m, it is used to hold OPGW or Earth Wire. The pulling grips are specially braided from high strength galvanized steel wire strands. It can hold the OPGW tightly and protect the surface of OPGW well.
Conductor Mesh Socks Joint
Technical Data
| Item number | Model | Applicable Conductor(ACSR) |
Rated Load (KN) |
|
| Single head | Double head | |||
| 17161 | 17181 | SLW(S)-1.5 | ACSR70-95 | 15 |
| 17162 | 17182 | SLW(S)-2 | ACSR120-150 | 20 |
| 17163 | 17183 | SLW(S)-2.5 | ACSR185-240 | 25 |
| 17164 | 17184 | SLW(S)-3 | ACSR300-400 | 30 |
| 17165 | 17185 | SLW(S)-4 | ACSR500-600 | 40 |
| 17166 | 17186 | SLW(S)-5 | ACSR720 | 50 |
| 17167 | 17187 | SLW(S)-7 | ACSR900 | 70 |
| 17168 | 17188 | SLW(S)-8 | ACSR1000-1120 | 80 |
| 17169 | 17189 | SLW(S)-12 | ACSR1250 | 120 |
This mesh sock grip is used for connecting or gripping a variety of aluminum conductor steel reinforced when the wires are released. It is able to pass through all kinds of stringing block and tension wheel
