Product Details
Place of Origin: NINGBO CHINA
Brand Name: Lingkai
Certification: ISO
Model Number: SLX
Payment & Shipping Terms
Minimum Order Quantity: 5 sets
Price: get the latest
Packaging Details: plywood case
Delivery Time: 5-8 working days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 20000 sets/month
Description: |
Transmission Line Swivel Joints |
Working Load: |
Max. 320 KN |
Connection: |
Pilot Rope With Socket Joint |
Type: |
Fixing Type And Articulated Type |
Diameter Rope: |
Max. 38 Mm |
Delivery: |
Within 10 Days |
Description: |
Transmission Line Swivel Joints |
Working Load: |
Max. 320 KN |
Connection: |
Pilot Rope With Socket Joint |
Type: |
Fixing Type And Articulated Type |
Diameter Rope: |
Max. 38 Mm |
Delivery: |
Within 10 Days |
The swivel joiints are made from high strength alloy steel, galvanized. Specially designed for bearing high radial loads. Please note the swivel joints can not be used for connection of pulling rope. Because the pulling rope should pass the capstans of hydraulic puller.
Swivel Joint connector is used to pull conductors. It is constructed with ball bearings inside, to eliminate the torque force when stringing conductors. The swivel joints are suitable to connect the pulling rope to the mesh socket joints which are installed on the conductors. The swivel joints are also used to connect the pulling rope with running boards.

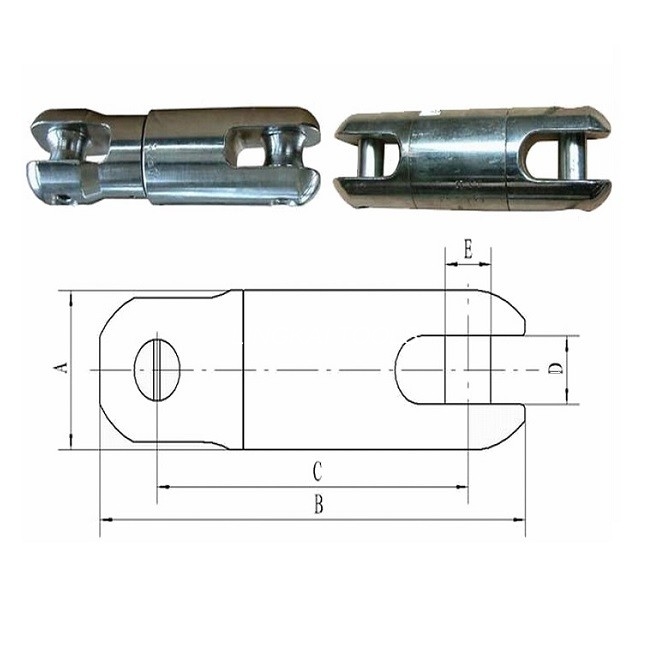

Transmission Line Stringing Swivels
| Item No. | Model | Dimension of Connector (mm) | Rated Load (KN) | Weight (kg) | ||||
| A | B | C | D | E | ||||
| 17121 | SLX-0.5 | 19 | 61 | 40 | 8 | 9 | 5 | 0.2 |
| 17122 | SLX-1 | 30 | 100 | 72 | 12 | 13 | 10 | 0.4 |
| 17123 | SLX-2 | 35 | 120 | 90 | 14 | 14 | 20 | 0.55 |
| 17124 | SLX-3 | 37 | 129 | 92 | 16 | 16 | 30 | 0.65 |
| 17125 | SLX-5 | 42 | 154 | 115 | 18 | 17 | 50 | 1.5 |
| 17126 | SLX-8 | 57 | 220 | 165 | 24 | 22 | 80 | 2.4 |
| 17127 | SL130 | 62 | 248 | 192 | 26 | 24 | 130 | 3.5 |
| 17128 | SL180 | 75 | 294 | 222 | 26 | 26 | 180 | 7.2 |
| 17129 | SL250 | 85 | 331 | 251 | 30 | 30 | 250 | 10.6 |
| 17130 | SL250Y | 80 | 323 | 243 | 30 | 30 | 250 | 8.0 |
| 17130A | SL320 | 85 | 346 | 264 | 38 | 30 | 320 | 9.7 |
