Product Details
Place of Origin: Ningbo
Brand Name: LINGKAI
Certification: ISO
Model Number: LBNX
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: get the latest
Packaging Details: exported standard packing
Delivery Time: 3-10 days
Payment Terms: T/T, L/C, Western Union
Name: |
Inner Suspension Aluminum Alloy |
Description Of Product: |
Aluminum Alloy Gin Poles |
Max. Length Of Gin Pole: |
25 Meters |
Head Type: |
3 Types Can Be Selected |
Cross Section: |
650X650 |
Bottom Type: |
2 Types Can Be Selected |
Max. Working Load: |
120 KN |
Model: |
LBNX400 LBD400 LBNXG150 |
Name: |
Inner Suspension Aluminum Alloy |
Description Of Product: |
Aluminum Alloy Gin Poles |
Max. Length Of Gin Pole: |
25 Meters |
Head Type: |
3 Types Can Be Selected |
Cross Section: |
650X650 |
Bottom Type: |
2 Types Can Be Selected |
Max. Working Load: |
120 KN |
Model: |
LBNX400 LBD400 LBNXG150 |

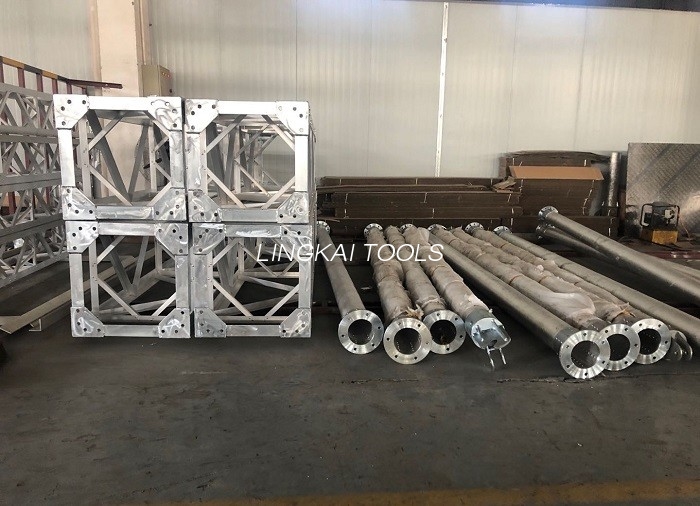

Inner Suspended Lattice Tower Erection Gin Poles Of Power Line Construction Equipment
Gin Poles (Jin Poles) are used for tower erection or material lifting in overhead power line construction. The equipment is used with motorised winch and pulleys. Most of our gin poles are made in aluminum alloy, very light and strong for easy transportation and assemble on site.
Aluminum alloy inner-suspension type gin pole (Lattice)
| Item No. | Overall Length (m) | Side Length of Cross Section (mm) | Allowed Axial Load (KN) | Weight (kg/m) |
| 03121 | 10 | 250 | 23 | 10.5 |
| 03123 | 12 | 16 | ||
| 03124 | 13 | 13 | ||
| 03125 | 14 | 11 | ||
| 03126 | 15 | 10 | ||
| 03131 | 11 | 300 | 29 | 11 |
| 03132 | 12 | 24 | ||
| 03134 | 14 | 18 | ||
| 03136 | 16 | 13 | ||
| 03138 | 18 | 11 | ||
| 03142 | 12 | 350 | 33 | 13.5 |
| 03144 | 14 | 24 | ||
| 03146 | 16 | 19 | ||
| 03148 | 18 | 15 | ||
| 03151 | 12 | 400 | 43 | 14.6 |
| 03153 | 14 | 32 | ||
| 03155 | 16 | 25 | ||
| 03157 | 18 | 19 | ||
| 03159 | 20 | 14 | ||
| 03511 | 14 | 500A | 75 | 18 |
| 03513 | 16 | 64 | ||
| 03515 | 18 | 50 | ||
| 03517 | 20 | 41 | ||
| 03521 | 17 | 500B | 88 | 22 |
| 03523 | 19 | 70 | ||
| 03525 | 21 | 60 | ||
| 03527 | 23 | 52 | ||
| 03529 | 25 | 42 | ||
| 03531 | 17 | 600A | 75 | 20 |
| 03533 | 19 | 65 | ||
| 03535 | 21 | 55 | ||
| 03537 | 23 | 49 | ||
| 03539 | 25 | 41 | ||
| 03541 | 17 | 600B | 119 | 24 |
| 03543 | 19 | 104 | ||
| 03545 | 21 | 85 | ||
| 03547 | 23 | 70 | ||
| 03549 | 25 | 58 |
Application: It is used to assemble and erect tower in power transmission line construction. The gin poles are made in aluminum alloy and could be assembled piece by piece. There are a few kinds of heads and bottoms to be selected according to customer's requirement.
