Product Details
Place of Origin: NINGBO
Brand Name: Lingkai
Certification: ISO
Model Number: SJZ-10B, SJZ-10C, LJ-300B, LJ-500B
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: get the latest
Packaging Details: wooden case
Delivery Time: 3-8 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 200 sets/month
Model: |
SJZ-10B, SJZ-10C, LJ-300B, LJ-500B |
Max. Pulling Force: |
30 KN |
Capstan: |
Single |
Type: |
Steel Reel Or Steel Capstan |
Description:: |
Engine Powered Motorised Winches |
Engine: |
Diesel Or Honda Petrol Engine |
Max. Pulling Speed: |
80 Meter / Minute |
Shifts: |
3 Forward 1 Backward |
Model: |
SJZ-10B, SJZ-10C, LJ-300B, LJ-500B |
Max. Pulling Force: |
30 KN |
Capstan: |
Single |
Type: |
Steel Reel Or Steel Capstan |
Description:: |
Engine Powered Motorised Winches |
Engine: |
Diesel Or Honda Petrol Engine |
Max. Pulling Speed: |
80 Meter / Minute |
Shifts: |
3 Forward 1 Backward |
Engine Motorised Winch Take-Up Machine SJZ-10B For Conductor Pulling Winch
Engine Motorised Winch Take-Up Machine SJZ-10B For Conductor Pulling Winch
Motorised Take up Winches are used for old conductor and earth wire recovering, material lifting and cable pulling. It is used for withdraw old conductors and ground wires.

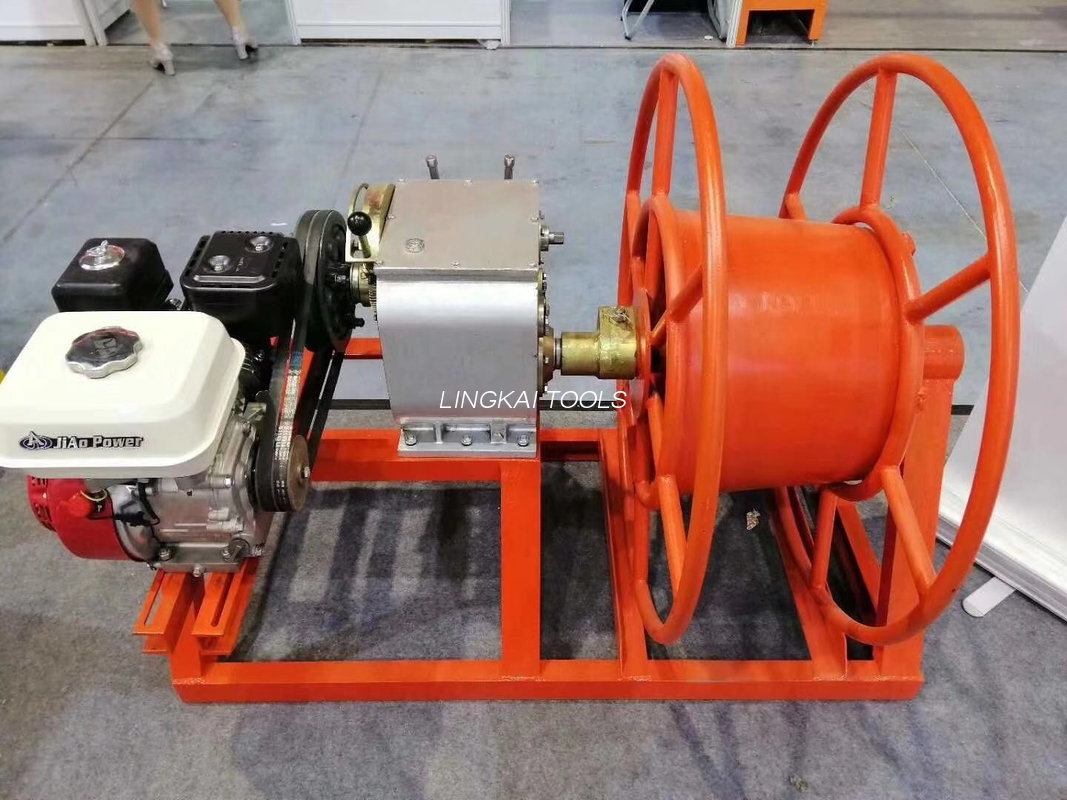

Motorised Cable Take-Up Machine
| Item No. | 08151 | 08152 | |
| Model | SJZ-10B | SJZ-10C | |
| Engine | Model | GX160 Gasoline engine | Z170F Diesel engine |
| Power (hp) | 5.5 | 4 | |
| Speed (rpm) | 1500 | 2600 | |
| Max. take-up force (KN) | 10 | 10 | |
| Max. Take-up speed (m/min) | 41 | 41 | |
| Reel Capacity (m) | ACSR95mm² | 600 | 600 |
| ACSR120mm² | 460 | 460 | |
| ACSR185mm² | 320 | 320 | |
| Weight (kg) | 150 | 165 | |
| Dimension (m) | 1.2 x 0.9 x 1 | 1.2 x 0.9 x 1 | |
Application: It is used for withdrawing the old conductor or earth wire in line stringing.
Features: The machine is equipped HONDA petrol engine or diesel engine. The steel drum can be detachable for change the old conductor or earth wire.
Motorised Take-up Winch Machine (Diesel engine or Honda Petrol Engine)
| Item No. | 08192 | 08193 | 08194 | |
| Model | LJ-300B | LJ-500A | LJ-500 | |
| Diameter of Capstans (mm) | Φ300 | Φ500 | Φ500 | |
| Petrol Engine | Model | Petrol GX270 | R175A | Petrol GX270 |
| Power (hp) | 9 | 6 | 9 | |
| Speed (rpm) | 3600 | 2600 | 3600 | |
| Pull force (KN) / Pull speed (m/min) | I | 25/8.5 | 16/10.5 | 16/13.6 |
| II | 15/13.4 | 10/16.6 | 10/21.5 | |
| III | 6/33.5 | 4/40.8 | 4/53.6 | |
| Reverse | /9.6 | /11.8 | /15.3 | |
| Dimension (mm) | 870 x 620 x 650 | 920 x 700 x 710 | 900 x 700 x 710 | |
| Weight (kg) | 140 | 190 | 150 | |
Application: It is used for withdrawing the old conductor or earth wire in line stringing.
Features: The machine is equipped HONDA petrol engine or diesel engine. It is equipped with automatic brake system for safety.
