Product Details
Place of Origin: Ningbo China
Brand Name: Lingkai
Certification: ISO CE
Model Number: 916mm
Payment & Shipping Terms
Minimum Order Quantity: 10 sets
Price: get the latest
Packaging Details: wooden case/ container
Delivery Time: 3-10 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 5000 sets/month
Max Suitable Acsr: |
ACSR 700 |
Dimension: |
Φ916×Φ800×110 |
Max Rated Load: |
50 KN |
Sheave Feature: |
MC /cast |
Max Suitable Acsr: |
ACSR 700 |
Dimension: |
Φ916×Φ800×110 |
Max Rated Load: |
50 KN |
Sheave Feature: |
MC /cast |

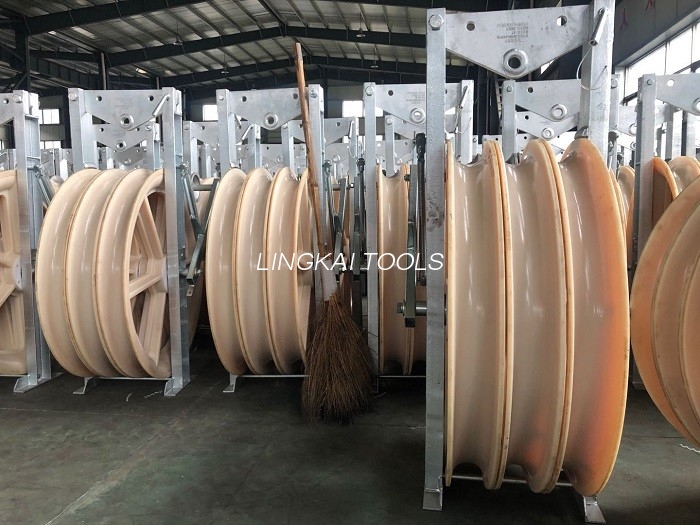

Our 916mm Large Diameter Stringing Block has the maximum suitable conductor LGJ720. In detail, the aluminum of this conducting wire can possess the largest cross section of up to 720 square millimeters. The dimension of block (outside diameter*root diameter*sheave width) is Φ916× Φ 800× 110 (mm).
1.Maximum suitable conductor ACSR720.
2.Sheave dimension ( outside diameter× root diameter × sheave width) Φ916×Φ800×110(mm).
3.The middle sheave can be customized as cast steel sheave
| Item Number | Model | Number of Sheave | Rated Load (KN) | Weight (kg) | Sheave Feature |
| 10151 | SHDN916 | 1 | 50 | 51 | MC nylon sheave |
| 10152 | SHSQN916 | 3 | 75 | 120 | |
| 10153 | SHWQN916 | 5 | 150 | 200 | |
| 10151 | SHDN916-125 | 1 | 50 | 60 |
