Product Details
Place of Origin: NINGBO CHINA
Brand Name: LINGKAI
Certification: ISO
Model Number: SJZ-10B
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: get the latest
Packaging Details: wooden case packing
Delivery Time: 7-10 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 100 sets/month
Model: |
GX160 Gasoline Engine |
Power (hp): |
5.5 |
Speed (rpm): |
1500 |
Steel Wire Length: |
Be Customied |
Model: |
GX160 Gasoline Engine |
Power (hp): |
5.5 |
Speed (rpm): |
1500 |
Steel Wire Length: |
Be Customied |
This winch machine is used for withdrawing the old conductor or earth wire in transmission line stringing or maintenance operation. The take-up winch can be used for pulling small cable on site, or retrieving old conductor and earth wire in conductor changing or OPGW changing project.

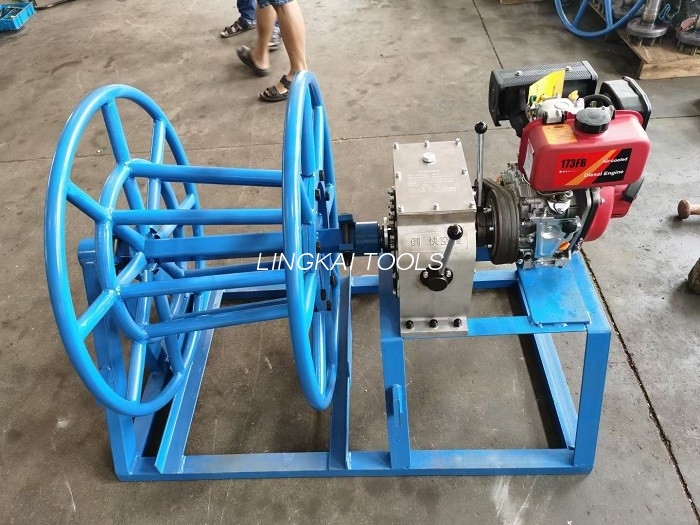

Motorised Cable Take-Up Machine
| Item No. | 08151 | 08152 | |
| Model | SJZ-10B | SJZ-10C | |
| Engine | Model | GX160 Gasoline engine | Z170F Diesel engine |
| Power (hp) | 5.5 | 4 | |
| Speed (rpm) | 1500 | 2600 | |
| Max. take-up force (KN) | 10 | 10 | |
| Max. Take-up speed (m/min) | 41 | 41 | |
| Reel Capacity (m) | ACSR95mm² | 600 | 600 |
| ACSR120mm² | 460 | 460 | |
| ACSR185mm² | 320 | 320 | |
| Weight (kg) | 150 | 165 | |
| Dimension (m) | 1.2 x 0.9 x 1 | 1.2 x 0.9 x 1 | |
Application: It is used for withdrawing the old conductor or earth wire in line stringing.
Features: The machine is equipped HONDA petrol engine or diesel engine. The steel drum can be detachable for change the old conductor or earth wire.
Take-up Winch Machine
| Item No. | 08192 | 08193 | 08194 | |
| Model | LJ-300B | LJ-500A | LJ-500 | |
| Diameter of Capstans (mm) | Φ300 | Φ500 | Φ500 | |
| Petrol Engine | Model | Petrol GX270 | R175A | Petrol GX270 |
| Power (hp) | 9 | 6 | 9 | |
| Speed (rpm) | 3600 | 2600 | 3600 | |
| Pull force (KN) / Pull speed (m/min) | I | 25/8.5 | 16/10.5 | 16/13.6 |
| II | 15/13.4 | 10/16.6 | 10/21.5 | |
| III | 6/33.5 | 4/40.8 | 4/53.6 | |
| Reverse | /9.6 | /11.8 | /15.3 | |
| Dimension (mm) | 870 x 620 x 650 | 920 x 700 x 710 | 900 x 700 x 710 | |
| Weight (kg) | 140 | 190 | 150 | |
Application: It is used for withdrawing the old conductor or earth wire in line stringing.
Features: The machine is equipped HONDA petrol engine or diesel engine. It is equipped with automatic brake system for safety.
