Product Details
Place of Origin: NINGBO CHINA
Brand Name: LINGKAI
Certification: ISO
Model Number: SJZ-10B
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: get the latest
Packaging Details: wooden case packing
Delivery Time: 7-10 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 100 sets/month
Model: |
GX160 Gasoline Engine |
Power (hp): |
5.5 |
Speed (rpm): |
1500 |
Model: |
GX160 Gasoline Engine |
Power (hp): |
5.5 |
Speed (rpm): |
1500 |

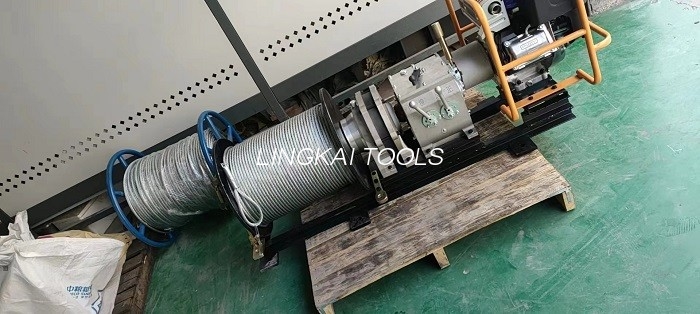

This winch machine is used for withdrawing the old conductor or earth wire in transmission line stringing or maintenance operation. The take-up winch can be used for pulling small cable on site, or retrieving old conductor and earth wire in conductor changing or OPGW changing project.
Motorised Cable Take-Up Machine
| Item No. | 08151 | 08152 | |
| Model | SJZ-10B | SJZ-10C | |
| Engine | Model | GX160 Gasoline engine | Z170F Diesel engine |
| Power (hp) | 5.5 | 4 | |
| Speed (rpm) | 1500 | 2600 | |
| Max. take-up force (KN) | 10 | 10 | |
| Max. Take-up speed (m/min) | 41 | 41 | |
| Reel Capacity (m) | ACSR95mm² | 600 | 600 |
| ACSR120mm² | 460 | 460 | |
| ACSR185mm² | 320 | 320 | |
| Weight (kg) | 150 | 165 | |
| Dimension (m) | 1.2 x 0.9 x 1 | 1.2 x 0.9 x 1 | |
Application: It is used for withdrawing the old conductor or earth wire in line stringing.
Features: The machine is equipped HONDA petrol engine or diesel engine. The steel drum can be detachable for change the old conductor or earth wire.
| Item No. | 09121 | 09122 | 09123 | 09124 | |
| Model | JJQ-30-B | JJQ-30-Y | JJQ-50-B | JJQ-50-Y | |
| Petrol Engine Power (hp) | 5.5 | 5.5 | 9 | 10 | |
| Petrol Engine Model | Honda Gx160 | YAMAHA MZ175 | Honda Gx270 | YAMAHA MZ300 | |
| Petrol Engine Speed (rpm) | 3600 | 3600 | |||
| Pull force (KN) / Pull speed (m/min) | I shift | 7.1/18.1 | 12.5/18.5 | ||
| II shift | 19/6.8 | 30/7.3 | |||
| III shift | 30/4.3 | 50/4.6 | |||
| Reverse shift | -/4.8 | -/5.2 | |||
| Diameter of Capstan (mm) | Φ160 | Φ160 | |||
| Dimension (mm) | 750 x 600 x 520 | 870 x 620 x 520 | |||
| Weight (kg) | 108 | 135 | |||
Application: it is used for pulling, lifting, tower erection and sagging operation in line construction.
Features: It is equipped with mechanical automatic brake system. Light weight, easy to operate and maintain.
Note: Petrol Engine is Honda engine from Japan.
