Product Details
Place of Origin: NINGBO CHINA
Brand Name: LINGKAI
Certification: ISO
Model Number: JJC-30 50
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: get the latest
Packaging Details: wooden case packing
Delivery Time: 7-10 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 100 sets/month
Model: |
JJC-30 50 |
Diesel Engine Power (hp): |
4 &6 |
Diesel Engine Model: |
Z170F /R175A |
Diesel Engine Speed (rpm): |
2600 |
Model: |
JJC-30 50 |
Diesel Engine Power (hp): |
4 &6 |
Diesel Engine Model: |
Z170F /R175A |
Diesel Engine Speed (rpm): |
2600 |

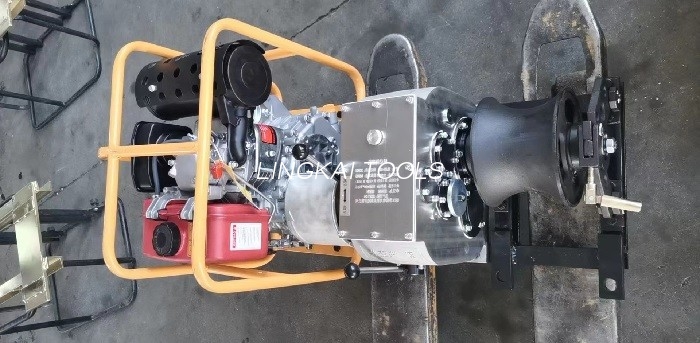

Diesel Engine Motorised Winch is used for tower erection, lifting operation and sagging operation in transmission line construction and power line stringing operation.
Diesel engine has the characteristics of low speed and high torque, and it is more fue.
Our motorised winches are used for tower erection, lifting operation and sagging operation in transmission line construction and power line stringing operation. Diesel engine has the characteristics of low speed and high torque, and it is more fuel efficient.
We are the leading manufacture of motorised winches in China, our products have been sold in China for more than 30 years. Our winches have been sold to more than 500 customers in China. and more than 30 countries in the world.
Diesel Engine Powered Winches
| Item No. | 09111 | 09112 | |
| Model | JJC-30 | JJC-50 | |
| Diesel Engine Power (hp) | 4 | 6 | |
| Diesel Engine Model | Z170F | R175A | |
| Diesel Engine Speed (rpm) | 2600 | 2600 | |
| Pull force (KN) / Pull speed (m/min) | I shift | 7/18.1 | 15/13.8 |
| II shift | 15/7.2 | 30/5.7 | |
| III shift | 30/4.6 | 50/3.6 | |
| Reverse shift | -/5.2 | -/6.3 | |
| Diameter of Capstan (mm) | Φ160 | Φ160 | |
| Dimension (mm) | 800 x 620 x 520 | 890 x 670 x 520 | |
| Weight (kg) | 137 | 170 | |
Application: It is used for tower erection and sagging operation in power line construction.
Features: All the winches are equipped with mechanical brake system for saftey working on site. The switch box is produced under our CNC machine center, the structure of switch box is simple and high efficiency, the machine is easy to operate and maintain.
