Product Details
Place of Origin: NINGBO CHINA
Brand Name: LINGKAI
Certification: ISO
Model Number: JJQ-30-B 50B
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: get the latest
Packaging Details: wooden case packing
Delivery Time: 7-10 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 100 sets/month
Petrol Engine Model: |
HONDA/ YAMAHA |
Petrol Engine Speed (rpm): |
3600 |
Pull Force (KN) / Pull Speed (m/min): |
4 SHIFTS |
Diameter Of Capstan (mm): |
160 |
Petrol Engine Model: |
HONDA/ YAMAHA |
Petrol Engine Speed (rpm): |
3600 |
Pull Force (KN) / Pull Speed (m/min): |
4 SHIFTS |
Diameter Of Capstan (mm): |
160 |

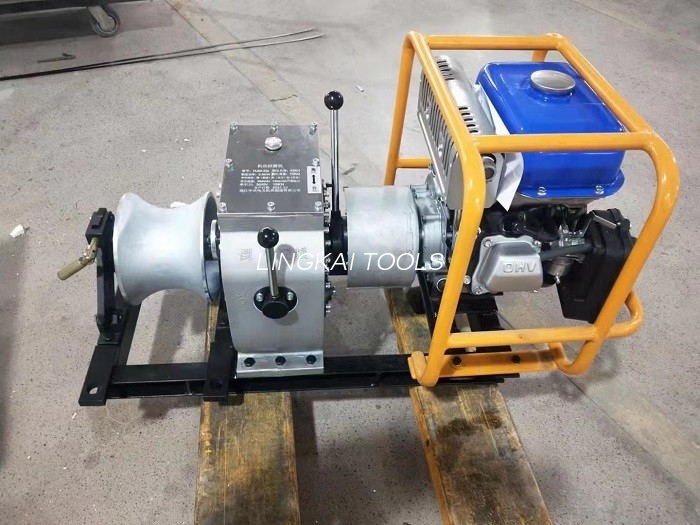

Motorised Winches are used for power line construction, pulling cables, tower erection, conductor sagging operation, lifting operation etc. It is more efficient and safety than manual winch. Our petrol engine winch is equipped Honda petrol engineer, which is very stable and long using life.
Motorised Winches are used for power line construction, pulling cables, tower erection, conductor sagging operation, lifting operation etc. It is more efficient and safety than manual winch. Our petrol engine winch is equipped Honda petrol engineer, which is very stable and long using life.
Our motorised winch has very stable working conditions, because the gear box parts are produced under CNC machine centers.
Petrol Engine Powered Winches
| Item No. | 09121 | 09122 | 09123 | 09124 | |
| Model | JJQ-30-B | JJQ-30-Y | JJQ-50-B | JJQ-50-Y | |
| Petrol Engine Power (hp) | 5.5 | 5.5 | 9 | 10 | |
| Petrol Engine Model | Honda Gx160 | YAMAHA MZ175 | Honda Gx270 | YAMAHA MZ300 | |
| Petrol Engine Speed (rpm) | 3600 | 3600 | |||
| Pull force (KN) / Pull speed (m/min) | I shift | 7.1/18.1 | 12.5/18.5 | ||
| II shift | 19/6.8 | 30/7.3 | |||
| III shift | 30/4.3 | 50/4.6 | |||
| Reverse shift | -/4.8 | -/5.2 | |||
| Diameter of Capstan (mm) | Φ160 | Φ160 | |||
| Dimension (mm) | 750 x 600 x 520 | 870 x 620 x 520 | |||
| Weight (kg) | 108 | 135 | |||
