Ningbo Lingkai Electric Power Equipment Co., Ltd. nbtransmission@163.com 86--15958291731
Product Details
Place of Origin: NINGBO CHINA
Brand Name: LINGKAI
Certification: ISO
Model Number: SKL
Payment & Shipping Terms
Minimum Order Quantity: 10 SETS
Price: get the latest
Packaging Details: wooden case packing
Delivery Time: 7-10 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 500 sets/month
Applications: |
ACSR Conductors |
Special Size Jaws: |
Can Be Customized |
Conductor Diameter (mm): |
ACSR 7-45 |
Rated Load: |
7-90KN |
Applications: |
ACSR Conductors |
Special Size Jaws: |
Can Be Customized |
Conductor Diameter (mm): |
ACSR 7-45 |
Rated Load: |
7-90KN |
Herramientas para tendido de cables are used for stringing overhead conductors in transmission line construction. We produce winches, come along clamps, stringing rollers, ratchet chain hoists, conductor joint protectors etc.

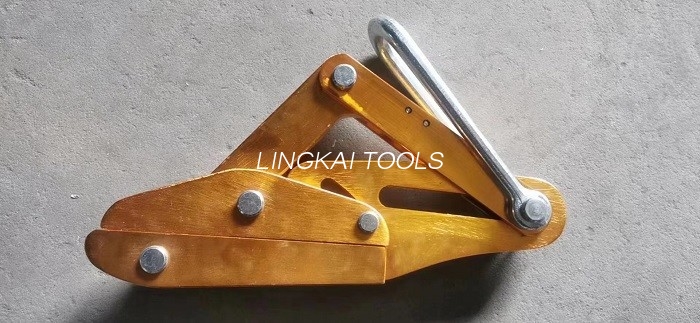

Aluminum Alloy Conductor COME ALONG CLAMPS
| Item No. | Model | Rated Load (KN) | Conductor Diameter (mm) | Max. Opening (mm) | Weight (kg) |
| 13221 | SKL-7 | 7 | ACSR7-12 | 14 | 1.0 |
| 13222 | SKL-15 | 15 | ACSR13-16 | 18 | 1.4 |
| 13223 | SKL-25 | 25 | ACSR17-23 | 24 | 3.0 |
| 13224 | SKL-40 | 40 | ACSR23-29 | 32 | 4.4 |
| 13225 | SKL-50 | 50 | ACSR30-35 | 36 | 6.6 |
| 13227 | SKL-60 | 60 | ACSR36-38 | 40 | 9.2 |
| 13228 | SKL-70 | 70 | ACSR38-40 | 42 | 14 |
| 13229 | SKL-80 | 80 | ACSR40-42 | 45 | 18 |
| 13229A | SKL-80A | 90 | ACSR42-45 | 48 | 20 |
Application: It is used to pull conductors in power and communication line construction field, and to maintain temporary tension until it can be permanently terminated.
Feature: The come along clamp are forged from high strength aluminum alloy, light weight and high strength. All the jaws of clamps are specially designed for ACSR conductors. Special size jaws can be ordered as per the customer’s requirement.
