Model: |
QY 200. 300,125 |
Max. Compression Force (KN): |
200T, 300T 125T |
Max. Hydraulic Pressure (MPa): |
94 |
Max. ACSR Size (mm²): |
2500 |
Model: |
QY 200. 300,125 |
Max. Compression Force (KN): |
200T, 300T 125T |
Max. Hydraulic Pressure (MPa): |
94 |
Max. ACSR Size (mm²): |
2500 |

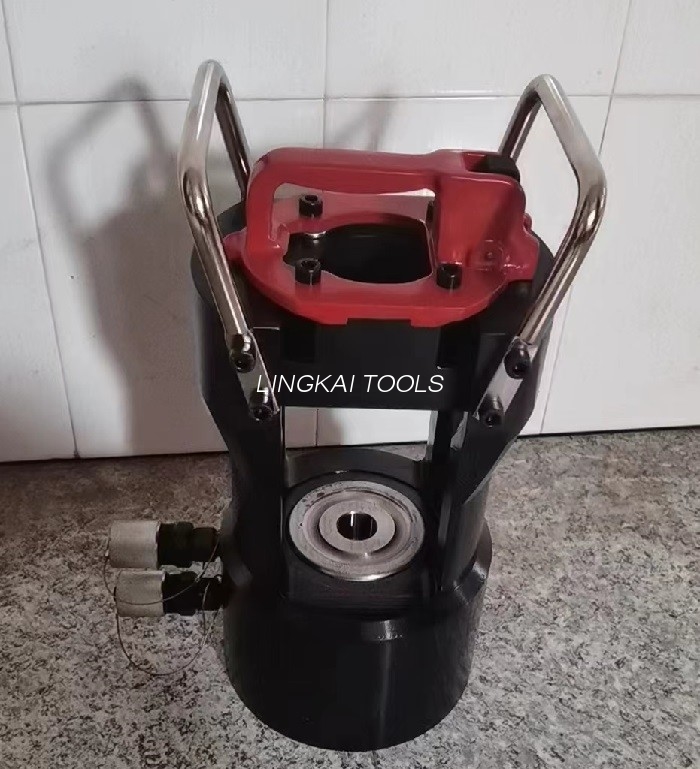

Hydraulic Press Machine with motorised hydraulic pump is used for ACSR conductor jointing on overhead transmission line stringing.
Hydraulic Compressors for Conductor Joints
| Item No. | Model | Max. Compression Force (KN) | Max. Hydraulic Pressure (MPa) | Max. ACSR Size (mm²) | Stroke (mm) | Weight (kg) |
| 16101 | QY-25 | 250 | 70 | 240 | 22 | 6 |
| 16102 | QY-45 | 450 | 70 | 240 | 25 | 12 |
| 16103 | QY-65 | 650 | 94 | 500 | 25 | 25 |
| 16104 | QY-125 | 1250 | 94 | 720 | 25 | 40 |
| 16105 | QY-200 | 2000 | 94 | 1440 | 25 | 85 |
| 16106A | QY-300 | 3000 | 94 | 2500 | 35 | 126 |
Application: The hydraulic compressor head is used with motorised hydraulic pump for compression of conductor joint or earth wire joint. It is casted from high strength steel.
Note:
High Pressure Hydraulic Pump Station (Model: YBG-94WQ)
| Item No. | Description | Hydraulic Pressure (MPa) | Oil Flow (L/min) | Power (KW) | Weight (kg) |
| 16146 | Gasoline motor driven hydraulic pump station mounted on hand cart | 75 | 1.5 | 4.41 | 68 |
Note: The pump stations only act as power sources for hydraulic compressors or other equipment.
The Gasoline motor is HONDA GX160.
The length of standard hydraulic Hose is 3 meters. Longer Hose is optional.
Hexagon Compression Die sets
| Item No. | Matching Compressor | Specification of Hexagonal Die Set (Outer Diameter of Compression terminal, L for Aluminum compression terminal, G for steel terminal) |
| 16121 | QY-25 | Copper or Aluminum Terminators 16-240mm2 |
| 16122 | QY-35 | L – 16, 18, 20, 22, 24, 26, 30, 32, 34, 36 mm |
| 16123 | QY-65 | L - 26, 28, 30, 32, 34, 36, 38, 40, 45, 50 mm G -12, 14, 16, 18, 20, 22, 24, 26 mm |
| 16124 | QY-125 | L - 26, 28, 30, 32, 34, 36, 38, 40, 45, 50, 52, 55, 60 mm G -12, 14, 16, 18, 20, 22, 24, 26 mm |
| 16125 | QY-200 | L - 26, 28, 30, 32, 34, 36, 38, 40, 45, 50, 52, 55, 60, 65, 70, 75, 80 mm G -12, 14, 16, 18, 20, 22, 24, 26, 28, 30, 32 mm |
| 16126 | QY-300 | L - 30, 32, 34, 36, 38, 40, 45, 50, 52, 55, 60, 65, 70, 75, 80,95,100 mm G -16, 18, 20, 22, 24, 26, 28, 30, 32,34,36,38,42,44,45,48,50 mm |
Note: the Hexagonal Die sets could be made according to the requirement of customer.
