Place of Origin: NINGBO CHINA
Brand Name: LINGKAI
Certification: ISO
Model Number: ST
Payment & Shipping Terms
Minimum Order Quantity: 10 SETS
Price: get the latest
Packaging Details: wooden case packing
Delivery Time: 7-10 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 500 sets/month
Work Load (KN): |
1X,2X, 4X |
Model: |
ST |
Lining Length (mm): |
120-265 |
Material: |
Steel And Lined With Aluminum Alloy |
Work Load (KN): |
1X,2X, 4X |
Model: |
ST |
Lining Length (mm): |
120-265 |
Material: |
Steel And Lined With Aluminum Alloy |
Conductor lifter is used for lifting conductors during the sagging and installation of anex on transmission line. The product is made of steel and lined with aluminum alloy.
Conductor Lifting Plate Hooks
| Item No. | Model | Work load (KN) | Lining Length (mm) | Lining Width (mm) | Weight (kg) |
| 19101 | ST8 | 8 | 60 | 36 | 1 |
| 19102 | ST12 | 12 | 120 | 48 | 2.5 |
| 19103 | ST25 | 25 | 200 | 40 | 7 |
| 19104 | ST40 | 40 | 260 | 50 | 10.5 |
| 19105 | ST60 | 60 | 265 | 60 | 12 |
Application: Lifting hooks are used for lifting conductors on transmission line.
Customer can use it to assemble different conductor lifter according to their requirement.
Note: Groove of hook is covered with an aluminum lining to eliminate damage to the conductor.

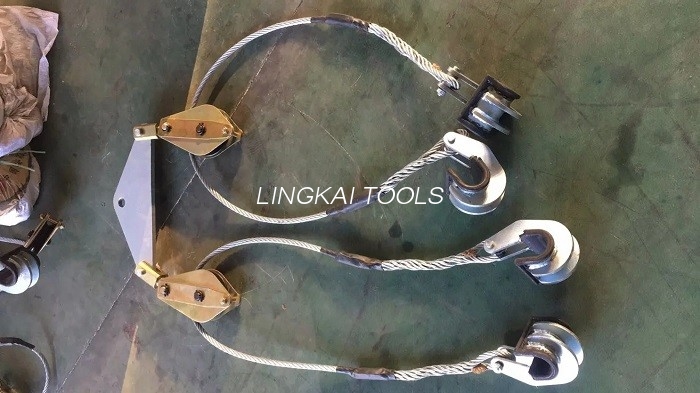

Lifting Tools for two Bundled Conductors
| Item No. | Model | Work load (KN) | Lining Length (mm) | Weight (kg) |
| 19112 | ST25R | 2 x 12 | 120 | 13 |
| 19113 | ST50R | 2 x 25 | 200 | 26 |
| 19114 | ST80R | 2 x 40 | 260 | 40 |
Application: Conductor Lifting Tools are used for lifting 2 bundled conductors on transmission line in sagging operation or maintenance operation.
Note: Groove of hook is covered with an aluminum lining to eliminate damage to the conductor.
Lifting Tools for 4 Bundled Conductors
| Item No. | Model | Work load (KN) | Lining Length (mm) | Weight (kg) |
| 19115 | ST50S | 4 x 12 | 120 | 35 |
| 19116 | ST100S | 4 x 25 | 200 | 67 |
| 19117 | ST160S | 4 x 40 | 260 | 97 |
Application: Conductor Lifting Tools are used for lifting four bundled conductors on transmission line in sagging operation or maintenance operation.
Note: Groove of hook is covered with an aluminum lining to eliminate damage to the conductor.
