Product Details
Place of Origin: NINGBO CHINA
Brand Name: LINGKAI
Certification: ISO
Model Number: SLU
Payment & Shipping Terms
Minimum Order Quantity: 10 SETS
Price: get the latest
Packaging Details: wooden case packing
Delivery Time: 7-10 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 5000 sets/month
Name: |
Fixed Joints |
Model: |
SLU |
Material: |
High Strength Alloy Steel |
Application: |
Power Line Stringing Operation |
Name: |
Fixed Joints |
Model: |
SLU |
Material: |
High Strength Alloy Steel |
Application: |
Power Line Stringing Operation |

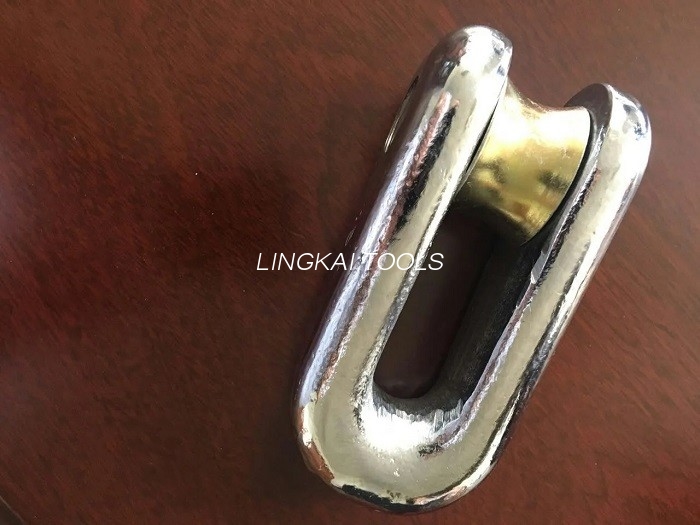

Fixed Joints (Pilot wire rope connecto) in power line stringing operation.
“U” Shape Pilot Wire Connectors
| Item No. | Model | Dimension of Connector (mm) | Rated Load (KN) | Weight (kg) | ||||
| A | B | C | D | E | ||||
| 17111 | SLU-1 | 36 | 68 | 18 | 14 | 24 | 10 | 0.2 |
| 17112 | SLU-3 | 37 | 76 | 20 | 17 | 28 | 30 | 0.2 |
| 17113 | SLU-5 | 50 | 98 | 23 | 19 | 43 | 50 | 0.6 |
| 17114 | SLU-8 | 58 | 120 | 28 | 25 | 52 | 80 | 1.1 |
| 17115 | SLU-10 | 59 | 126 | 30 | 26 | 54 | 100 | 1.2 |
| 17116 | SLU-13 | 61 | 134 | 32 | 27 | 56 | 130 | 1.2 |
| 17117 | SLU-15 | 63 | 138 | 37 | 28 | 58 | 150 | 1.4 |
| 17118 | SLU-25 | 80 | 178 | 44 | 35 | 72 | 250 | 3.0 |
| 17118A | SLU-28 | 80 | 178 | 44 | 35 | 72 | 280 | 3.0 |
| 17119 | SLU-32 | 85 | 186 | 42 | 38 | 80 | 320 | 3.9 |
Application: It is used to connect anti twisting steel wire rope during transmission line stringing operation.
It is forged from high strength alloy steel, the axle of connector is protected with sleeve.
The fixed joints are suitable to connect anti twisting braided steelrope to pass through the bull wheels of hydraulic puller tensioner.
he special designed profile minimises the overload on the rope spliced eyes during the passage.
