Product Details
Place of Origin: NINGBO CHINA
Brand Name: LINGKAI
Certification: ISO
Model Number: SKDZ
Payment & Shipping Terms
Minimum Order Quantity: 10 SETS
Price: get the latest
Packaging Details: wooden case packing
Delivery Time: 7-10 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 5000 sets/month
Model: |
SKDZ |
Breaking Load (KN): |
Max 15 T |
Wire Size Range (mm²): |
Max 150-185 |
Max. Opening (mm): |
20 |
Model: |
SKDZ |
Breaking Load (KN): |
Max 15 T |
Wire Size Range (mm²): |
Max 150-185 |
Max. Opening (mm): |
20 |

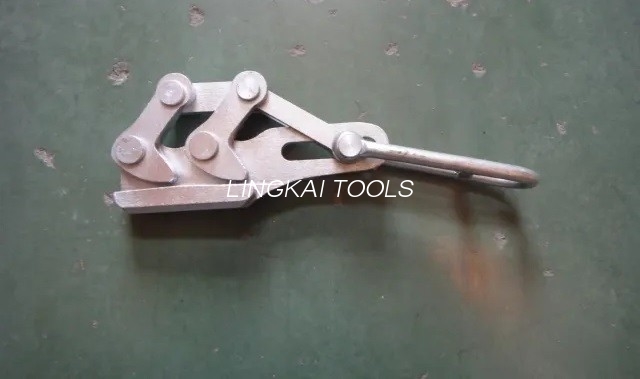

Ground Wire Grips are used for installation and stringing of overhead transmission line GSW cables,
because GSW cable is made in hard wire, so the jaws of Ground wire grips are made of special alloy steel, for holding the GSW cable well.
SKDZ Model Earth Wire Grips (Automatic come along clamps for ground wires)
| Item No. | Model | Rated Load (KN) | Breaking Load (KN) | Wire Size Range (mm²) | Max. Opening (mm) | Weight (kg) |
| 13101 | SKDZ-0.5 | 5 | 15 | 10-25 | 10 | 2 |
| 13102 | SKDZ-1 | 10 | 30 | 25-50 | 12 | 2 |
| 13103 | SKDZ-2 | 20 | 60 | 50-70 | 14 | 2.9 |
| 13104 | SKDZ-3 | 30 | 90 | 70-120 | 16 | 3.5 |
| 13105 | SKDZ-5 | 50 | 150 | 150-185 | 20 | 6.3 |
Application: It is used for sagging of earth wires and adjustment of guy wires.
Material: It is forged from quality.
SKD type Ground Wire Grips (Automatic come along clamps for ground wires)
| Item No. | Model | Rated Load (KN) | Breaking Load (KN) | Wire Size Range (mm²) | Max. Opening (mm) | Weight (kg) |
| 13113 | SKD25 | 10 | 30 | 25 | 9.5 | 2.5 |
| 13114 | SKD35 | 10 | 30 | 35 | 9.5 | 2.5 |
| 13115 | SKD50 | 15 | 45 | 50 | 10 | 3.5 |
| 13116 | SKD70 | 20 | 60 | 70 | 12.5 | 5.0 |
| 13117 | SKD100 | 30 | 90 | 100 | 14 | 6.0 |
Application: It is used for sagging of earth wires and adjustment of guy wires.
Each model is only suitable for one model of ground wire.
Material: It is forged from quality alloy steel, the jaws are specially designed for holding the ground wires.
SKDS Dual Cam Type Earth Wire Grips
| Item No. | Model | Rated Load (KN) | Breaking Load (KN) | Wire Size Range (mm²) | Max. Opening (mm) | Weight (kg) |
| 13141 | SKDS-1 | 10 | 20 | 25-50 | 11 | 2.6 |
| 13142 | SKDS-2 | 20 | 40 | 70-120 | 13 | 3.1 |
| 13143 | SKDS-3 | 30 | 60 | 95-150 | 15 | 4.1 |
Application: It is used for tensioning of earth wires and adjustment of guy wires.
The gripping pressure of two knurled cams is applied to stranded steel wires.
