Product Details
Place of Origin: NINGBO CHINA
Brand Name: LINGKAI
Certification: ISO
Model Number: HSH-CII1.5 3 6
Payment & Shipping Terms
Minimum Order Quantity: 3 SETS
Price: get the latest
Packaging Details: wooden case packing
Delivery Time: 3-10 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 1000 sets/month
Model: |
HSH-CII1.5, 3, 6 |
Chain Lenght: |
Can Be Customized |
Name: |
Lever Blocks |
Application: |
Tightening Conductors |
Model: |
HSH-CII1.5, 3, 6 |
Chain Lenght: |
Can Be Customized |
Name: |
Lever Blocks |
Application: |
Tightening Conductors |

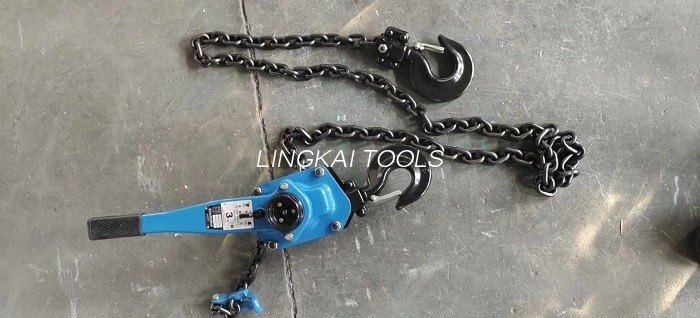

Ratchet Chain Hoist (Lever Blocks) is used for lifting goods or tightening conductors with come along clamps during sagging operation in transmission line stringing project.
Ratchet Lever Hoist with chain.
| MODEL | HSH-CII1.5 | HSH-CII3 | HSH-CII6 | |
| Item No. | 14222 | 14232 | 14242 | |
| CAPACITY (TONS) | 1.5 | 3 | 6 | |
| STANDARD LIFT (M) | 3 | 3 | 3 | |
| RUNNING TEST LOAD (KN) | 22.5 | 37.5 | 75.0 | |
| EFFORT REQUIRED TO LIFT RATED LOAD (N) | 220 | 320 | 340 | |
| STRAND NO. OF LOAD CHAIN | 1 | 1 | 2 | |
| LOAD CHAIN DIAMETER (MM) | 8 | 10 | 10 | |
| DIMENSIONS (MM) | A | 203 | 215 | 200 |
| B | 118 | 130 | 130 | |
| C | 155 | 200 | 200 | |
| D | 45 | 50 | 64 | |
| H | 380 | 480 | 600 | |
| L | 370 | 410 | 410 | |
| K | 36 | 40 | 50 | |
| NET WEIGHT (KG) | 11.8 | 21 | 32 | |
| PACK MEASUREMENT (MM) | 46.5X15.5X19 | 51X19X21.5 | 53X22X21.5 | |
| EXTRA WEIGHT OF PER METER | 1.4 | 2.2 | 4.4 | |
Application: It is used for lifting goods or pulling the conductors with come along clamps during the sagging operation.
The solid bearing is adopted in the joint of load sprocket wheel and wall panel,
to improve the flexibility and working efficiency. Mechanical braking system is available for safety.
