Product Details
Place of Origin: NINGBO CHINA
Brand Name: LINGKAI
Certification: ISO
Model Number: JJCS-50T
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: get the latest
Packaging Details: exported packing
Delivery Time: 3-10 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 10 sets/month
Name: |
Dull-bull Wheel Winches |
Application: |
Pull Conductors/OPGW,lifting Tools |
Site: |
Tower Erection,sagging Operation. |
Pulling Force: |
50KN |
Name: |
Dull-bull Wheel Winches |
Application: |
Pull Conductors/OPGW,lifting Tools |
Site: |
Tower Erection,sagging Operation. |
Pulling Force: |
50KN |
Motorised pulling winch is used in overhead power line construction project,
for pulling single conductor or OPGW, or lifting goods on site.
It can be used with gin poles for tower erection, or used for sagging operation.
Diesel Engine Powered Winches
| Item No. | 09111 | 09112 | |
| Model | JJC-30 | JJC-50 | |
| Diesel Engine Power (hp) | 4 | 6 | |
| Diesel Engine Model | Z170F | R175A | |
| Diesel Engine Speed (rpm) | 2600 | 2600 | |
| Pull force (KN) / Pull speed (m/min) | I shift | 7/18.1 | 15/13.8 |
| II shift | 15/7.2 | 30/5.7 | |
| III shift | 30/4.6 | 50/3.6 | |
| Reverse shift | -/5.2 | -/6.3 | |
| Diameter of Capstan (mm) | Φ160 | Φ160 | |
| Dimension (mm) | 800 x 620 x 520 | 890 x 670 x 520 | |
| Weight (kg) | 137 | 170 | |
Application: Used for tower erection and sagging operation in line construction.
Features: It is equipped with mechanical automatic brake system. Light weight, easy to operate and maintain.
Petrol Engine Powered Winches
| Item No. | 09121 | 09122 | 09123 | 09124 | |
| Model | JJQ-30-B | JJQ-30-Y | JJQ-50-B | JJQ-50-Y | |
| Petrol Engine Power (hp) | 5.5 | 5.5 | 9 | 10 | |
| Petrol Engine Model | Honda Gx160 | YAMAHA MZ175 | Honda Gx270 | YAMAHA MZ300 | |
| Petrol Engine Speed (rpm) | 3600 | 3600 | |||
| Pull force (KN) / Pull speed (m/min) | I shift | 7.1/18.1 | 12.5/18.5 | ||
| II shift | 19/6.8 | 30/7.3 | |||
| III shift | 30/4.3 | 50/4.6 | |||
| Reverse shift | -/4.8 | -/5.2 | |||
| Diameter of Capstan (mm) | Φ160 | Φ160 | |||
| Dimension (mm) | 750 x 600 x 520 | 870 x 620 x 520 | |||
| Weight (kg) | 108 | 135 | |||
Application: it is used for pulling, lifting, tower erection and sagging operation in line construction.
Features: It is equipped with mechanical automatic brake system. Light weight, easy to operate and maintain.
Note: Petrol Engine is Honda engine from Japan.
Double Wheels Motorised Winches (3T)
| Item No. | 09151 | 09152 | |
| Model | JJCS-30 | JJQS-30 | |
| Engine Model | Diesel engine R175 | Honda GX270 | |
| Engine Power(hp) | 6 | 9 | |
| Engine Speed (rpm) | 2600 | 3000 | |
| Pull force (KN) / Pull speed (m/min) | I shift | 30/5.7 | 30/7.43 |
| II shift | 18.9/9.1 | 19.2/11.8 | |
| III shift | 7.6/22.7 | 7.2/31.4 | |
| Reverse shift | -/6.5 | -/8.4 | |
| Diameter of Capstan (mm) | Φ240 | Φ240 | |
| Dimension (mm) | 1000 x 670 x 600 | 1000 x 670 x 600 | |
| Weight (kg) | 260 | 242 | |
Application: It is used for tower erection, hoisting goods, conductor or earth wire stringing operation in line construction.
Features: Dual-bull wheel structure could minimize the damage to steel ropes, anti twisting braided wire rope can pass the capstan.
It is equipped with mechanical automatic brake system. Light weight, easy to operate and maintain.

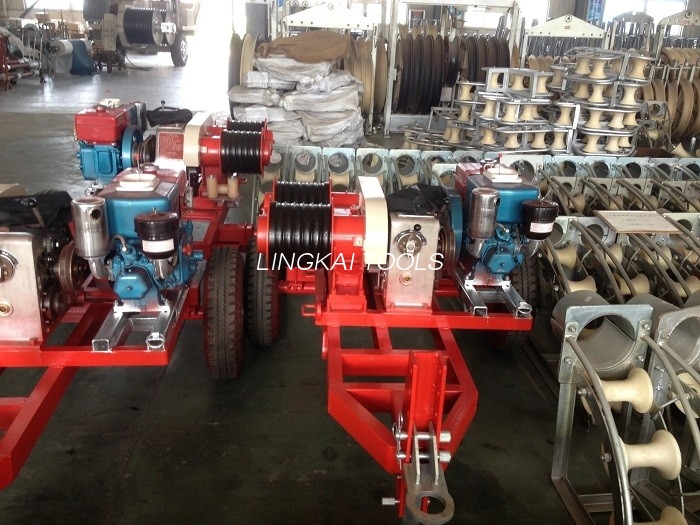

Dull-bull Wheel Winches (5T)
| Item No. | 09162 | |
| Model | JJCS-50T | |
| Diesel Engine Power (KW) | 9 | |
| Diesel Engine Model | S195G | |
| Diesel Engine Speed (rpm) | 2000 | |
| Pull force (KN) / Pull speed (m/min) | I, III shift | 50/3.1, 40/9.6 |
| II, V shift | 45/7.1, 17/22.3 | |
| IV, VI shift | 33/11.3, 10/35.6 | |
| Reverse shift | -/7.35 | |
| Diameter of Capstan (mm) | Φ300 | |
| Dimension (mm) | 2230 x 1210 x 1135 | |
| Weight (kg) | 700 | |
Application: It is used for tower erection, hoisting goods, conductor and earth wire (OPGW)
stringing operation in power & telecom line construction.
Features: The winches are mounted on the trailer, could be dragged in short distance.
It is equipped with mechanical automatic brake system. Light weight, easy to operate and maintain.
