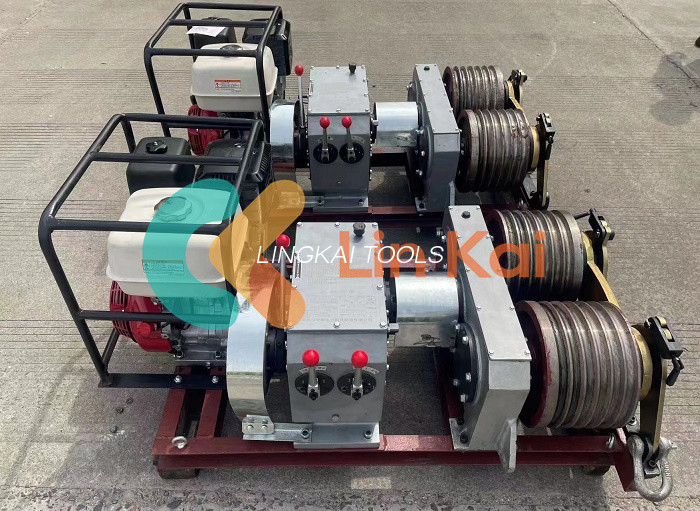

The Three Tons Dual-Bull Wheel Winch is specifically designed and manufactured to meet the demands of line construction. This versatile machine is particularly useful in field construction, as it is capable of serving as an ideal traction and lifting machine. Its primary function is to assist in erecting pylons, laying traction wires, and performing stringing and other operations for electricity, post, and telecommunications lines.
The double capstan structure of this winch results in minimal damage to the wire rope, making it an extremely popular choice among power sector and construction units in China, as well as with our customers all around the world.
Clutch & Hand Braking
The clutch is responsible for transferring the power of the engine to the movement of the outer cone-shaped block, which is done through the pulley or elastic coupling device. The disengagement position is located at the middle position. Please note that there are two bearings, namely, 6205-2Z and 51110, in the clutch. It is recommended to replace the bearings every 1000 hours or based on the actual operation. Please make sure to fill the clutch with lithium grease before assembling.
Gearbox
The gearbox consists of three sections, namely, the shift section, brake section, and deceleration section. The shift section transforms into three forward gears and one reverse gear using high precision carburizing gear. The power is then transmitted to the clutch shaft through the reduction gear. We utilize the overrunning clutch as the machine's brake, which comes with automatic braking function. With the clutch handle control of the hand brake in place, the machine has two sets of brake devices to ensure construction safety.
The deceleration part is made up of a three-stage reduction gear, which is responsible for carrying out large transmission ratios, small sizes, and light weights.
TECHNICAL DATA
| Item number | 09162A | 09162B | 09162 | |
| Model | JJCS-50 | JJQS-50 | JJCS-50 | |
| Engine | Model | Diesel Engine | Gasoline Engine | Diesel Engine |
| Power(KW) | 9 | 9 | 9 | |
| Speed(rpm) | 2000 | 3600 | 2000 | |
|
Pull(KN) speed force/ (M/MIN) |
Slow | 50/5 | 50/5 | 50/3.1,40/9.6 |
| Moderate | 25/9 14/14 | 25/9 14/14 | 45/7.1,17/22.3 | |
| Fast | 8/22 | 8/22 | 33/11.3,10/35.6 | |
| Reverse | -/5 -/9 | -/5 -/9 | -/7.35 | |
| Drum bottom of groove diamete(MM) | Φ230 | Φ230 | Φ300 | |
The Three Tons Dual–Bull Wheel Winch is designed for use in outdoor fields as traction and lifting machinery to meet the needs of mountainous areas. It operates without power and offers large traction capacity and simple operation.
The machine is equipped with a double capstan design, which means that the damage to the steel wire rope is reduced. Its components include an engine, clutch, gearbox (with brake), reel, and other important parts. In addition to its reliable performance, the winch is easy to maintain and repair.
