Product Details
Place of Origin: NINGBO
Brand Name: NBLK
Certification: ISO
Model Number: JJCS JJQS
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Get the latest
Packaging Details: Wooden case
Delivery Time: 3-7 days
Payment Terms: T/T
Supply Ability: 500sets/month
Power: |
9KW |
Capacity: |
30 Kn 50kn |
Warrenty: |
1 Year |
Engine: |
Diesel And Gasonline |
Drum Size: |
230mm 300mm |
Gear Box: |
Six |
Power: |
9KW |
Capacity: |
30 Kn 50kn |
Warrenty: |
1 Year |
Engine: |
Diesel And Gasonline |
Drum Size: |
230mm 300mm |
Gear Box: |
Six |

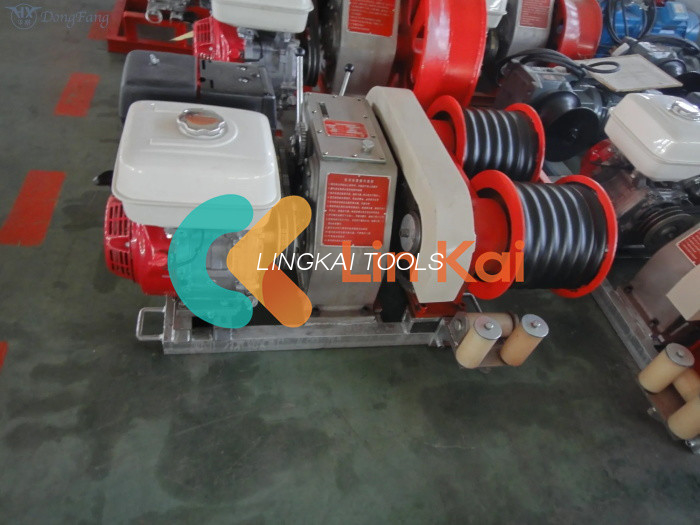

The Three Tons Dual-Bull Wheel Winch is specifically designed and produced to meet the needs of line construction. It is a top-of-the-line traction and lifting machine that is very useful in field construction projects. This machine is mainly used for erecting pylons, traction wire laying, stringing, and other operations related to electricity, post, and telecommunications lines.
The double capstan structure of this machine significantly minimizes damage to the wire rope. Due to its exceptional performance, this winch is very popular among power sector and construction units in China. Additionally, it has received a warm welcome from our customers all over the world.
Overall, the Three Tons Dual-Bull Wheel Winch is an excellent machine that offers exceptional performance and durability. Its design and production is a testament to our commitment to meeting the needs of line construction and field construction projects.
1 ．Engine parameters
| Engine model |
Engine power (hp) |
Engine speed (rpm) |
| R175A | 6 | 2600 |
| Imported Gasoline Engine Honda GX270 | 9 | 3600 |
2 ．Traction and traction speed
| Model | JJCS-30 | JJQS-30 | |
|
Traction(kN) / Traction Speed (m/min) |
Slow | 30/5.7 | 30.5/7.43 |
| Middle | 18.9/9.1 | 19.2/11.8 | |
| Fast | 7.6/22.7 | 7.2/31.4 | |
| Reverse | -/6.5 | -/8.4 | |
3.Other Parameters
| Model | Start mode | Diameter(mm) | Weight (kg) |
| JJCS-30(Diesel Engine R175A) | Hand start | 1050×710×600 | 260 |
| JJQS-30 (Honda GX270) | Pulling | 1050×710×520 | 242 |
| Rope |
TECHNICAL DATA
| Item number | 09162A | 09162B | 09162 | |
| Model | JJCS-50 | JJQS-50 | JJCS-50 | |
| Engine | Model | Diesel Engine | Gasoline Engine | Diesel Engine |
| Power(KW) | 9 | 9 | 9 | |
| Speed(rpm) | 2000 | 3600 | 2000 | |
|
Pull(KN) speed force/ (M/MIN) |
Slow | 50/5 | 50/5 | 50/3.1,40/9.6 |
| Moderate | 25/9 14/14 | 25/9 14/14 | 45/7.1,17/22.3 | |
| Fast | 8/22 | 8/22 | 33/11.3,10/35.6 | |
| Reverse | -/5 -/9 | -/5 -/9 | -/7.35 | |
| Drum bottom of groove diamete(MM) | Φ230 | Φ230 | Φ300 | |
Clutch and hand braking are essential components in the operation of a machine. The function of the clutch is to transfer power from the engine to the synchronous movement of the outer cone-shaped block through the pulley or elastic coupling device. The disengagement position is in the middle of the clutch, and it is important to note that there are two bearings - 6205-2Z and 51110- in the clutch. It is recommended to replace the bearings after every 1000 hours of operation or based on actual use. Before assembling, ensure that the clutch is filled with lithium grease.
Gearbox is another crucial component of a machine, and it comprises a shift section, brake section, and deceleration section. The shifting section consists of three forward gears and a reverse gear, which are transformed through high precision carburizing gear. The clutch shaft receives power through the reduction gear. Additionally, the machine uses overrunning clutch as the brake, which has an automatic braking function. The hand brake also utilizes the clutch handle control to ensure that the machine has two brake devices, ensuring safety during construction.
The deceleration section is comprised of a three-stage reduction gear, which ensures a large transmission ratio, small size, and lightweight. This section is crucial in controlling the speed of the machine and ensuring it operates efficiently. To maintain the efficacy of the machine, it is important to regularly check and maintain the gearbox.
The Three Tons Dual-Bull Wheel Winch is a highly useful and effective piece of machinery designed for use in remote and mountainous areas where there is limited access to power. It serves as both a traction and lifting device, offering versatility and flexibility to meet the unique needs of such areas.
One of the standout features of this machine is its considerable traction capabilities, which allow it to easily navigate challenging terrain and tackle tough jobs. Additionally, the machine's double capstan design ensures that damage to the steel wire rope is minimized.
The winch is composed of several components, including an engine, clutch, gearbox (with brake), and reel. Despite its powerful capabilities, the winch is easy to operate, and simple in its design. This simplicity translates to easy maintenance and repair, allowing it to be a reliable and low-maintenance addition to any work site.
Our Tower Erection Tools product comes with comprehensive technical support and services to ensure that our customers get the most out of their purchase. We provide on-site training and installation services to ensure that the tools are used correctly and safely. In addition, our technical support team is available 24/7 to answer any questions or address any concerns that our customers may have. Our team has extensive knowledge and experience in tower erection and we are committed to providing exceptional service to our customers.
