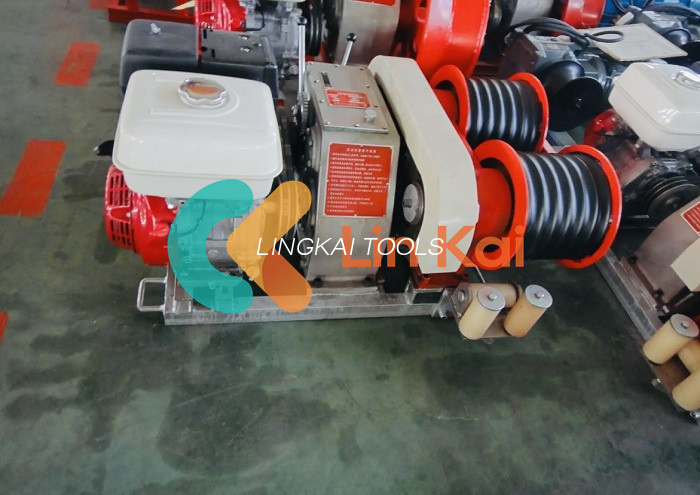

The Three Tons Dual-Bull Wheel Winch has been specifically designed and produced to fulfill the needs of line construction. It is an ideal machine for traction and lifting during field construction. It is primarily used for erecting pylons, laying traction wires, stringing and undertaking similar operations related to electricity, telecommunication and post line construction.
The machine boasts of a double capstan structure that ensures minimal damage to the wire rope. This feature is highly appreciated by customers all over the world, including those in the power sector and construction units within China.
The Three Tons Dual-Bull Wheel Winch is praised for its functionalities which makes it a popular choice among construction companies and workers worldwide.
TECHNICAL DATA
| Item number | 09162A | 09162B | 09162 | |
| Model | JJCS-50 | JJQS-50 | JJCS-50 | |
| Engine | Model | Diesel Engine | Gasoline Engine | Diesel Engine |
| Power(KW) | 9 | 9 | 9 | |
| Speed(rpm) | 2000 | 3600 | 2000 | |
Pull(KN) speed force/ (M/MIN) | Slow | 50/5 | 50/5 | 50/3.1,40/9.6 |
| Moderate | 25/9 14/14 | 25/9 14/14 | 45/7.1,17/22.3 | |
| Fast | 8/22 | 8/22 | 33/11.3,10/35.6 | |
| Reverse | -/5 -/9 | -/5 -/9 | -/7.35 | |
| Drum bottom of groove diamete(MM) | Φ230 | Φ230 | Φ300 | |
| Item No. | 09151 | 09152 | |
| Model | JJCS-30 | JJQS-30 | |
| Engine Model | Diesel engine R175 | Honda GX270 | |
| Engine Power(hp) | 6 | 9 | |
| Engine Speed (rpm) | 2600 | 3000 | |
| Pull force (KN) / Pull speed (m/min) | I shift | 30/5.7 | 30/7.43 |
| II shift | 18.9/9.1 | 19.2/11.8 | |
| III shift | 7.6/22.7 | 7.2/31.4 | |
| Reverse shift | -/6.5 | -/8.4 | |
| Diameter of Capstan (mm) | Φ240 | Φ240 | |
| Dimension (mm) | 1000 x 670 x 600 | 1000 x 670 x 600 | |
| Weight (kg) | 260 | 242 | |
Clutch & Hand Braking
The clutch is responsible for transferring the power of the engine to the synchronous movement of the outer cone-shaped block. This is achieved through the pulley (or elastic coupling device). The middle position of the clutch is known as the disengagement position.
Attention: There are two bearings (6205-2Z and 51110) within the clutch. It is advisable to replace the bearings every 1000 hours or based on actual operation. Be sure to fill with lithium grease before assembling.
Gearbox
The gearbox is made up of three sections: shift section, brake section, and deceleration section.
The shift section is transformed into three forward gears and one reverse gear through the use of high precision carburizing gear. The power is transferred to the clutch shaft through the reduction gear. The machine's brake is an overrunning clutch with automatic braking function.
In addition to the clutch handle control, the machine also has a hand brake as a second set of device to ensure construction safety. The deceleration section consists of a three-stage reduction gear, which carries out a large transmission ratio, small size, and is lightweight.
The Three Tons Dual-Bull Wheel Winch is a versatile traction and lifting machinery that's ideal for use in mountainous areas and outside fields. Unlike many other winches, this particular model can be used without power, which makes it a great option for those who need to operate the machinery in remote locations without access to a reliable power source.
One of the key advantages of this machine is that it boasts a large traction, making it capable of pulling and lifting heavy loads with ease. Additionally, its double capstan design ensures minimal damage to the steel wire rope, making it a highly reliable and safe option.
The Three Tons Dual-Bull Wheel Winch is made up of several key components, including an engine, clutch, gearbox (with brake), reel, and other components. Despite its advanced capabilities, the machine is incredibly easy to operate, and requires minimal training to use effectively. Best of all, it's simple to maintain and repair, ensuring that it will remain a reliable option for years to come.
