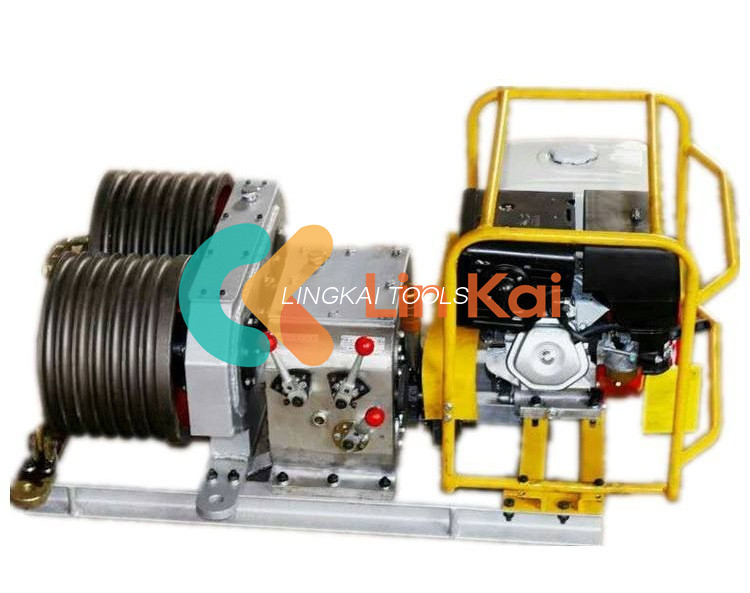

The Three Tons Dual-Bull Wheel Winch is a machine designed and produced to cater to the needs of line construction. It is an ideal machine for traction and lifting tasks in field construction. This machine is mainly used for erecting pylons, traction wire laying, stringing, and other operations necessary for electricity, post and telecommunications line construction.
This winch has a double capstan structure, causing very minimal damage to the wire rope. This design makes it popular with the power sector and construction units in China. In addition, our customer base across the globe has also expressed satisfaction with its performance.
TECHNICAL DATA
| Item number | 09162A | 09162B | 09162 | |
| Model | JJCS-50 | JJQS-50 | JJCS-50 | |
| Engine | Model | Diesel Engine | Gasoline Engine | Diesel Engine |
| Power(KW) | 9 | 9 | 9 | |
| Speed(rpm) | 2000 | 3600 | 2000 | |
|
Pull(KN) speed force/ (M/MIN) |
Slow | 50/5 | 50/5 | 50/3.1,40/9.6 |
| Moderate | 25/9 14/14 | 25/9 14/14 | 45/7.1,17/22.3 | |
| Fast | 8/22 | 8/22 | 33/11.3,10/35.6 | |
| Reverse | -/5 -/9 | -/5 -/9 | -/7.35 | |
| Drum bottom of groove diamete(MM) | Φ230 | Φ230 | Φ300 | |
The clutch is responsible for transferring the power from the engine to the synchronous movement of the outer cone-shaped block, which is achieved through the pulley or elastic coupling device. The disengagement position is located in the middle position of the clutch.
Please note that there are two bearings in the clutch, which are 6205-2Z and 51110. It is recommended to replace the bearings every 1000 hours or based on the actual operation. Lithium grease should be used to fill the bearings before assembling.
The gearbox consists of three sections, which are the shift section, the brake section, and the deceleration section.
The shifting part is transformed into three forward gears and a reverse gear, achieved through high precision carburizing gear. The power is then passed to the clutch shaft through the reduction gear. We use an overrunning clutch as the machine's brake, which provides an automatic braking function. This, coupled with the aforementioned clutch handle control of the hand brake, means that the machine has two sets of brake devices to ensure construction safety.
The deceleration section is made up of a three-stage reduction gear, which has a large transmission ratio, small size, and light weight.
The Three Tons Dual-Bull Wheel Winch is a versatile machinery that is used without power in outside fields. It is used as a traction and lifting machinery to meet the needs of mountainous areas and outside fields.
The machine has a large traction capacity and is operated easily. Due to its unique double capstan design, the damage to the steel wire rope is minimal. The winch is comprised of an engine, clutch, gearbox (with brake), reel, and other components.
Operating the winch is simple and it is easy to maintain and repair. Its simple design makes it a reliable and effective machinery for any outdoor project.
