Product Details
Place of Origin: NINGBO
Brand Name: NBLK
Certification: ISO
Model Number: JJCS JJQS
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Get the latest
Packaging Details: Wooden case
Delivery Time: 3-7 days
Payment Terms: T/T
Supply Ability: 500sets/month
Engine: |
Diesel And Gasonline |
Warrenty: |
1 Year |
Power: |
9KW |
Gear Box: |
Six |
Drum Size: |
230mm 300mm |
Capacity: |
30 Kn 50kn |
Engine: |
Diesel And Gasonline |
Warrenty: |
1 Year |
Power: |
9KW |
Gear Box: |
Six |
Drum Size: |
230mm 300mm |
Capacity: |
30 Kn 50kn |

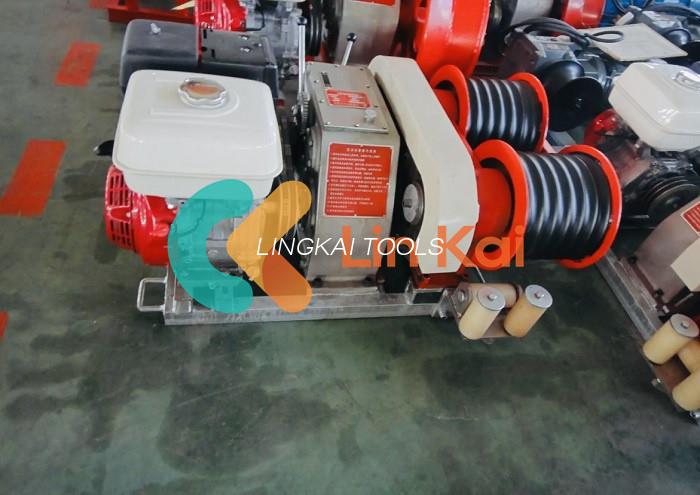

The Three Tons Dual-Bull Wheel Winch is specially designed and manufactured to cater to the needs of line construction. It is an excellent machine that offers both traction and lifting capabilities, required for field construction. The machine finds its primary use in erecting pylons, traction wire laying, stringing and other similar operations in electricity, post and telecommunications lines.
The double capstan structure of the winch causes minimal damage to the wire rope, which has made it extremely popular among the power sector and construction units in China. Further, it has also been welcomed by customers all over the world due to its unmatched functionality and durability.
The Three Tons Dual-Bull Wheel Winch is an ideal machine for all construction needs. Its robust design and capability to handle heavy duty operations make it a top choice for industries worldwide. So if you're looking for a winch that will help you complete your construction projects efficiently, choose the Three Tons Dual-Bull Wheel Winch!
Clutch & Hand Braking
The clutch is responsible for transferring the power from the engine to the outer cone-shaped block through the pulley or elastic coupling device. The middle position of the clutch is the disengagement position. To maintain the efficiency of the clutch, it is essential to replace the bearings 6205-2Z and 51110 every 1000 hours or based on actual operational needs. Assemble with lithium grease to ensure smooth functioning.
Attention: Ensure that you replace the bearings periodically. We recommend 1000 hours of operation as a guide.
Gearbox
The gearbox is divided into three sections: shift, brake, and deceleration. Through high precision carburizing gears, the shift section can be transformed into three forward gear and a reverse gear. The reduction gear passes the power to the clutch shaft. We use an overrunning clutch as the machine's brake, which has automatic braking functions. Additionally, the machine has two sets of brake devices: the aforementioned clutch handle control and the handbrake to ensure construction safety.
The deceleration part consists of a three-stage reduction gear, which carries out a large transmission ratio, small size, and light weight for ease of use and efficiency.
1 ．Engine parameters
| Engine model |
Engine power (hp) |
Engine speed (rpm) |
| R175A | 6 | 2600 |
| Imported Gasoline Engine Honda GX270 | 9 | 3600 |
2 ．Traction and traction speed
| Model | JJCS-30 | JJQS-30 | |
|
Traction(kN) / Traction Speed (m/min) |
Slow | 30/5.7 | 30.5/7.43 |
| Middle | 18.9/9.1 | 19.2/11.8 | |
| Fast | 7.6/22.7 | 7.2/31.4 | |
| Reverse | -/6.5 | -/8.4 | |
3.Other Parameters
| Model | Start mode | Diameter(mm) | Weight (kg) |
| JJCS-30(Diesel Engine R175A) | Hand start | 1050×710×600 | 260 |
| JJQS-30 (Honda GX270) | Pulling | 1050×710×520 | 242 |
| Rope |
The Three Tons Dual–Bull Wheel Winch is designed for use in outside fields where power is not readily available. This machine acts as a traction and lifting machinery, and is ideally suited for use in mountainous areas and other rugged terrain.
This winch provides ample traction and is simple to operate. The double capstan design means that the steel wire rope is less likely to be damaged during use. The machine is made up of several components including the engine, clutch, gearbox (with brake), reel, and more.
This winch is easy to operate and maintain making it a versatile option in a wide variety of outdoor settings.
The Tower Erection Tools product comes with technical support and services to help customers with any issues or questions they may have. Our team of experts can provide assistance with installation, operation, and maintenance of the product. Additionally, we offer training sessions to ensure that customers are able to use the product effectively and efficiently. Our services also include repairs and replacements of any faulty parts. We strive to provide prompt and effective customer support to ensure complete satisfaction with our product.
